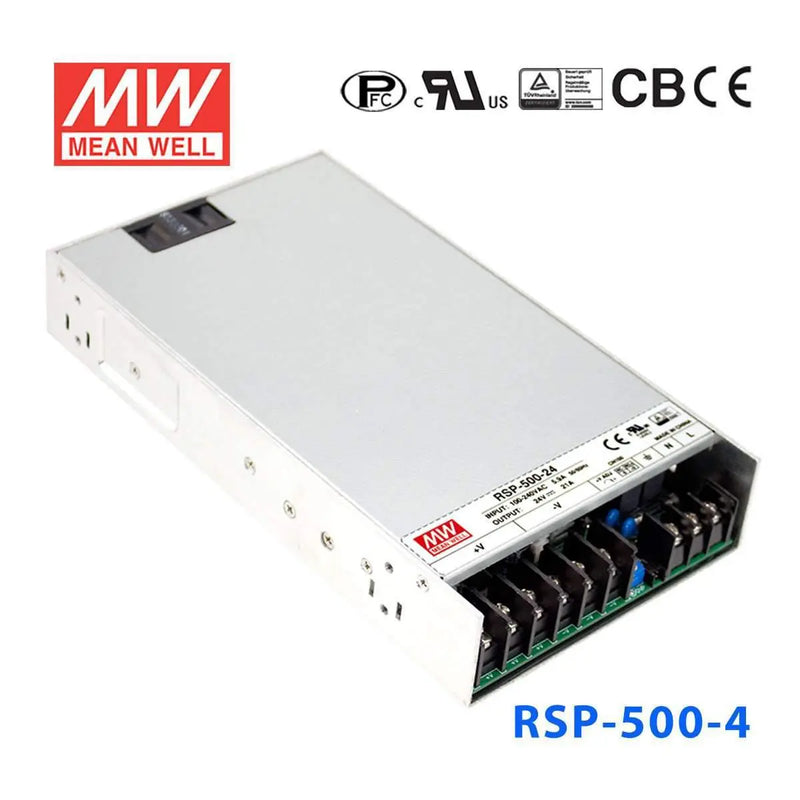

RSP-500-4 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

RSP-500-4

Availability: Out of stock
360 W4 V90 A85Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

RSP-500-4
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$84.74 USD
10+
$80.50 USD
20+
$78.81 USD
50+
$77.11 USD
100+
$75.42 USD
200+
$73.72 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
4V
Rated Current
90A
Power Rating
360W
Waterproof
Non-waterproof
Dimensions & Weight
9.05 x 5 x 1.59 in2.86 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

1U low profile
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
LED indicator for power on
Built-in remote sense and ON/OFF control
3 years warranty

General SpecificationĀ

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range Ā±10% rated output voltage
Overload protection Range 105%~130%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70Ā°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500)
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
Connection Input 3P / 9.5mm pitch terminal block
Connection Output 6P / 11mm pitch terminal block
Dimension (LxWxH) 230x127x40.5
Case No. 226A
