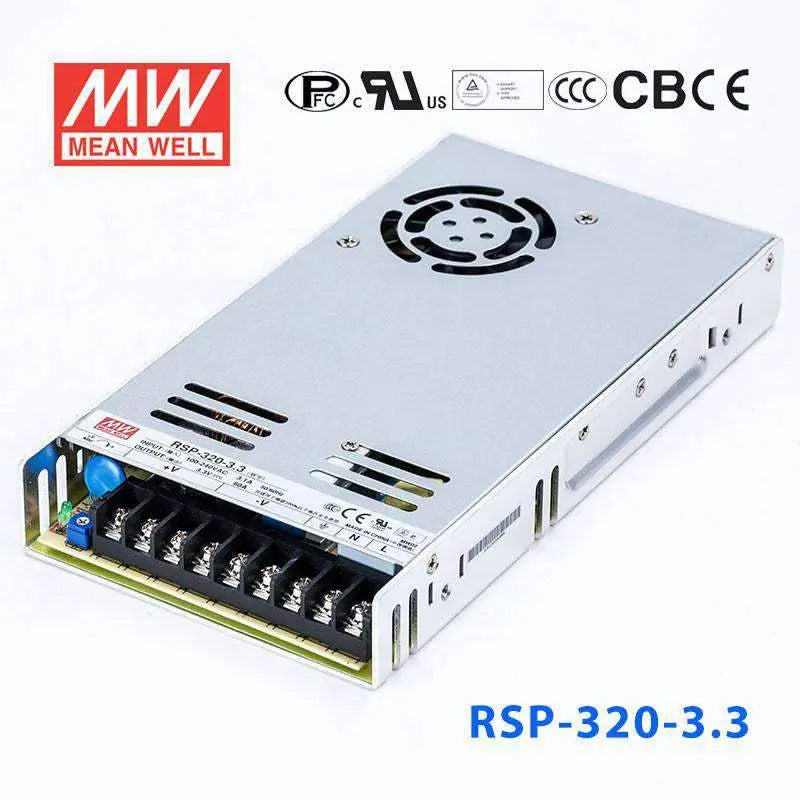

MEAN WELL RSP-320-3.3 enclosed power supply, 3.3V 60A 198W
RSP-320-3.3 specifications: 3.3V DC 60A, 198W, input 88-264VAC, 79.5% efficiency, UL62368-1
RSP-320-3.3 dimensions 215 x 115 x 30 mm (8.46 x 4.53 x 1.18 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL RSP-320-3.3 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
MEAN WELL RSP-320-3.3 enclosed power supply, 3.3V 60A 198W
RSP-320-3.3 specifications: 3.3V DC 60A, 198W, input 88-264VAC, 79.5% efficiency, UL62368-1
RSP-320-3.3 dimensions 215 x 115 x 30 mm (8.46 x 4.53 x 1.18 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL RSP-320-3.3 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
Manufacturer MEAN WELL

RSP-320-3.3

Availability: Out of stock
198 W3.3 V60 A88Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

RSP-320-3.3
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$52.57 USD
10+
$49.94 USD
20+
$48.89 USD
50+
$47.84 USD
100+
$46.79 USD
200+
$45.74 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
88V~264V
Output Voltage
3.3V
Rated Current
60A
Power Rating
198W
Waterproof
Non-waterproof
Dimensions & Weight
8.46 x 4.52 x 1.18 in1.98 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

1U low profile
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
LED indicator for power on
3 years warranty

General SpecificationĀ

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range Ā±10% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70Ā°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection Input 9P / 9.5mm pitch terminal block
Connection Output 9P / 9.5mm pitch terminal block
Dimension (LxWxH) 215x115x30
Case No. 207A

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
