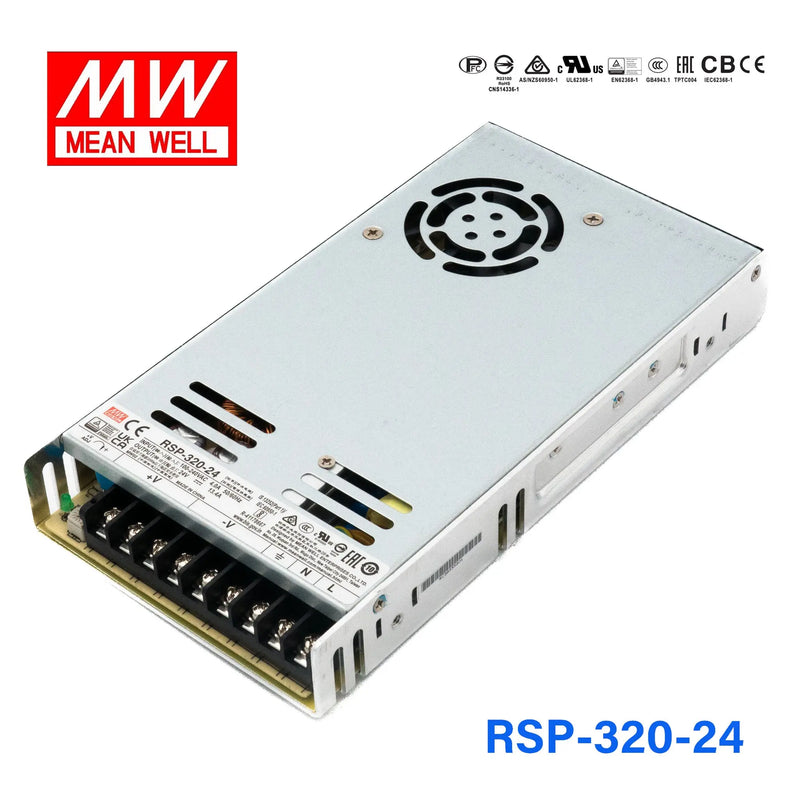

RSP-320-24

Name: RSP-320-24
Brand: MEAN WELL
SKU: 70814546
Price: 52.57 USD
Availability: InStock

$52.57

Availability: ✔ 15 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$49.94

20+

$48.89

50+

$47.84

100+

$46.79

200+

$45.74

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

13.4A

Power Rating

320W

Waterproof

Non-waterproof

Dimensions

8.46 x 4.52 x 1.18 in

Weight

1.98 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

1U low profile

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	88~264VAC; 124~370VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection Input	9P / 9.5mm pitch terminal block
Connection Output	9P / 9.5mm pitch terminal block
Dimension (LxWxH)	215x115x30
Case No.	207A
