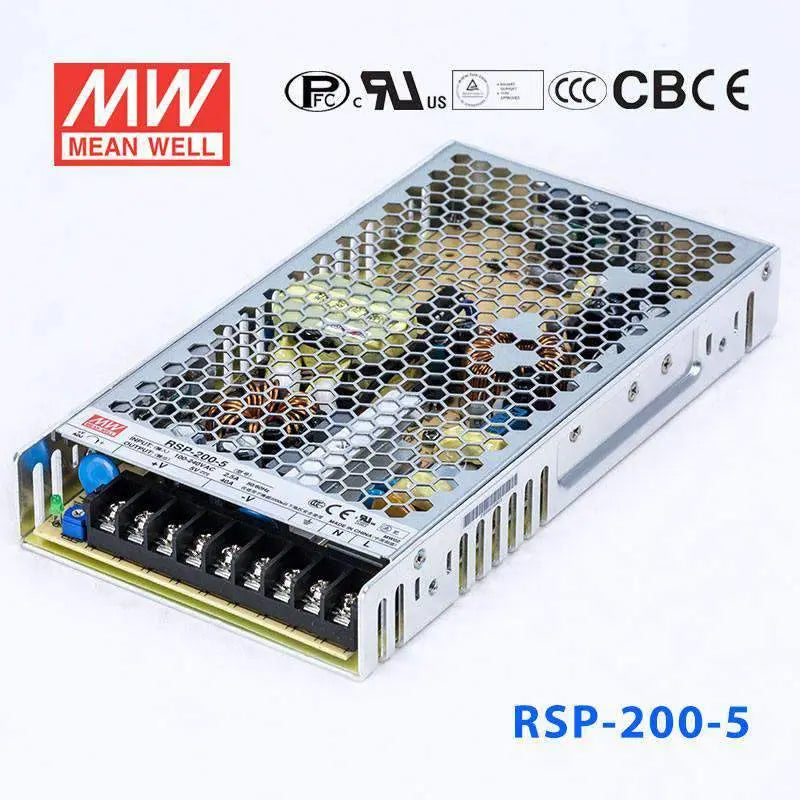

MEAN WELL RSP-200-5 enclosed power supply, 5V 40A 200W
RSP-200-5 specifications: 5V DC 40A, 200W, input 88-264VAC, 85.5% efficiency, UL62368-1
RSP-200-5 dimensions 215 x 115 x 30 mm (8.46 x 4.53 x 1.18 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL RSP-200-5 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
MEAN WELL RSP-200-5 enclosed power supply, 5V 40A 200W
RSP-200-5 specifications: 5V DC 40A, 200W, input 88-264VAC, 85.5% efficiency, UL62368-1
RSP-200-5 dimensions 215 x 115 x 30 mm (8.46 x 4.53 x 1.18 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL RSP-200-5 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
Manufacturer MEAN WELL

RSP-200-5

Availability: Out of stock
200 W5 V40 A88V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

RSP-200-5
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$40.65 USD
10+
$38.62 USD
20+
$37.80 USD
50+
$36.99 USD
100+
$36.18 USD
200+
$35.37 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
88V~264V
Output Voltage
5V
Rated Current
40A
Power Rating
200W
Waterproof
Non-waterproof
Dimensions & Weight
8.46 x 4.52 x 1.18 in1.58 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Ultra low profile: 30mm
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in active PFC function
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~150%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection 9P / 9.5mm pitch terminal block
Dimension (LxWxH) 215x115x30

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
