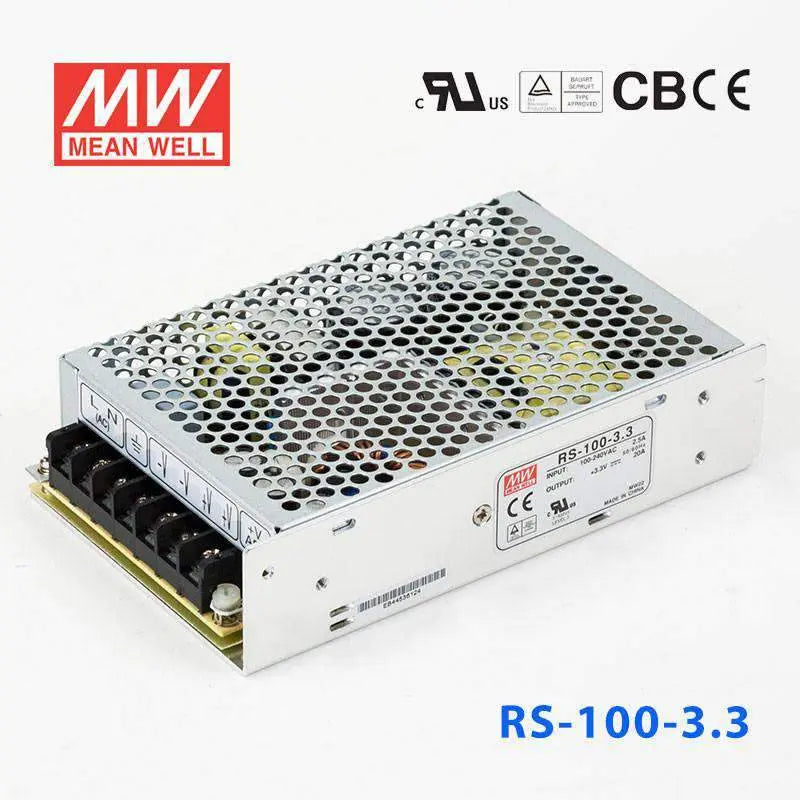

RS-100-3.3

Name: RS-100-3.3
Brand: MEAN WELL
Price: 25.92 USD
Availability: OutOfStock

$25.92

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$24.62

20+

$24.11

50+

$23.59

100+

$23.07

200+

$22.55

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

3.3V

Rated Current

20A

Power Rating

66W

Waterproof

Non-waterproof

Dimensions

6.25 x 3.81 x 1.49 in

Weight

1.32 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

All using 105°C long life electrolytic capacitors

Protections: Short circuit / Overload / Over voltage

Meet EMS EN50082-2/EN61000-6-2

Heavy industry level (35~150W)

Withstand 300VAC surge input for 5 sec.

High operating temperature up to 70°C

Withstand 5G vibration test

Miniature size, high power density

High efficiency, long life and high reliability

LED indicator for power on

100% full load burn-in test

Suitable for critical applications

3 years warranty

General Specification

AC input voltage range	88~264VAC, 125~373VDC
AC inrush current (max.)	40A at 230VAC
DC adjustment range	±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection	110%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-25~+70°C (refer to the derating curve for different models)
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)
Connection	Terminal block for input and output
Dimension (LxWxH)	159x 97x 38
Case No.	901C
Packing	24pcs /15.4kg
