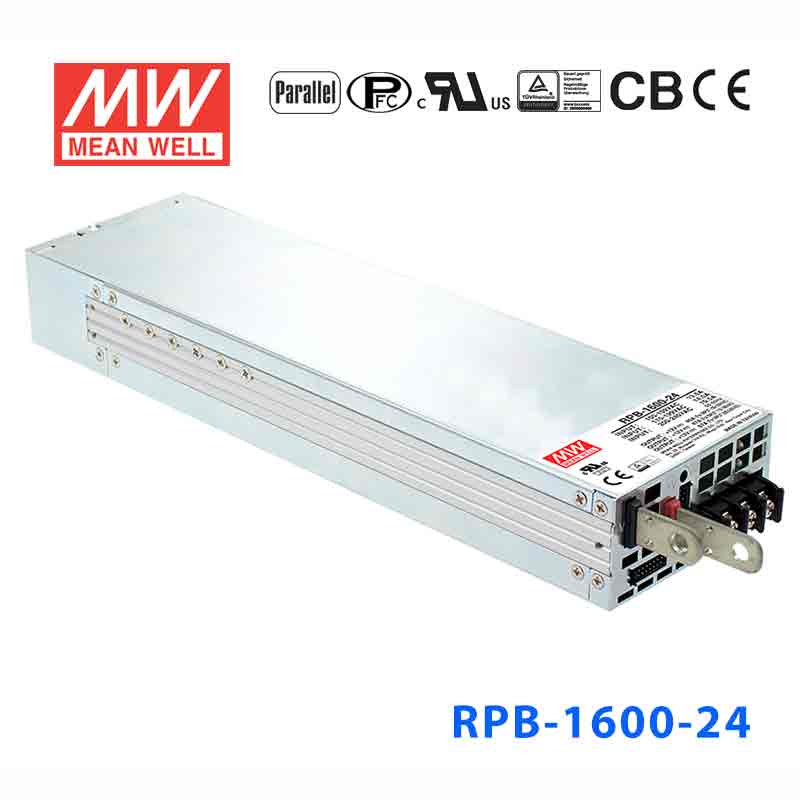

RPB-1600-24

Name: RPB-1600-24
Brand: MEAN WELL
Price: 450.54 USD
Availability: OutOfStock

$450.54

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$428.01

20+

$419.00

50+

$409.99

100+

$400.98

200+

$391.97

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

28.8V

Rated Current

55A

Power Rating

1600W

Waterproof

Non-waterproof

Dimensions

11.81 x 3.34 x 1.61 in

Weight

3.96 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

ilt-

Charger for lead-acid batteries(Gel, flooded and AGM) and Li-ion batteries(lithium iron and lithium manganese)

Built-in default 3 stage charging curves and programmable curve

Built-in I²C interface, PMBus protocol(Optional CANBus protocol)

Universal AC input/Full range

Built-in active PFC function

Forced air cooling by buin DC fan

Output voltage and current programmable

Built-in OR-ing FET

Active current sharing up to 4800W(2+1)

Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature

Optional conformal coating

5 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	up to 125% rated output voltage
Leakage current from battery	<2mA / 240VAC
Over temperature protection	Shut down o/p voltage, auto recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature	-30~+70ºC (refer to output derating curve)
Safety standards	UL62368-1, TUV EN62368-1, approved
EMC standards	EN55032 class B, EN61000-3-2,3; -4-2,4,5,6,8,11
Case No	250
Dimension (LxWxH) (mm)	3008541mm
Packing	6pcs/13.6Kg
