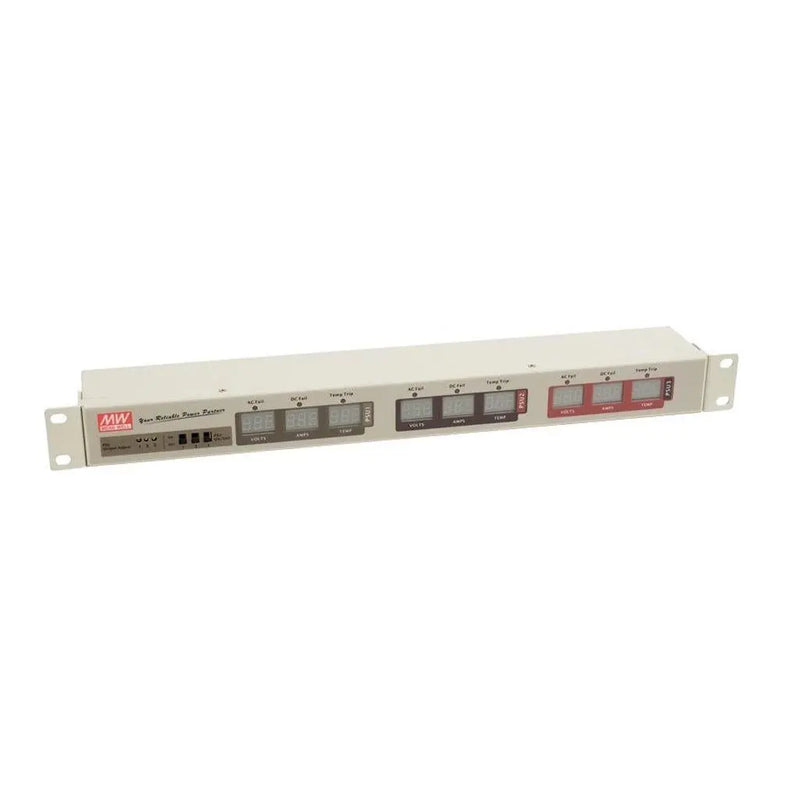

RCP-MU

Name: RCP-MU
Brand: MEAN WELL
Price: 198.76 USD
Availability: OutOfStock

$198.76

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$188.82

20+

$184.85

50+

$180.87

100+

$176.90

200+

$172.92

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Waterproof

Non-waterproof

Dimensions

17.32 x 2.67 x 1.73 in

Weight

2.53 lbs

Features

1U low profile

19-inch rack mounting

Control and monitor up to 3 RCP-1000 units

Suitable for all kinds of RCP output (12V, 24V, 48V)

Digital meters for output voltage, output current, and internal temperature on the front panel

Potential meter for adjusting the output voltage of RCP-1000 unit on the front panel

Relay contacts and LED indicators for AC to fail, DC fail, and over-temperature warning

Removable fixing accessory

5 years warranty

General Specification

AC input voltage range	90~264VAC \| 127~370VDC
Withstand voltage	I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVDC
Working temperature	-20~+60ºC (refer to output derating curve)
Safety standards	Design refers to EAC TP TC 004 approved
EMC standards	EN55032 class A, EN61000-4-2,3,4,5,6,8,11
Case No	701A
Dimension (LxWxH) (mm)	Rack 440 x 68 x 44
Packing	1.15Kg; 6pcs/8Kg/1.27CUFT
