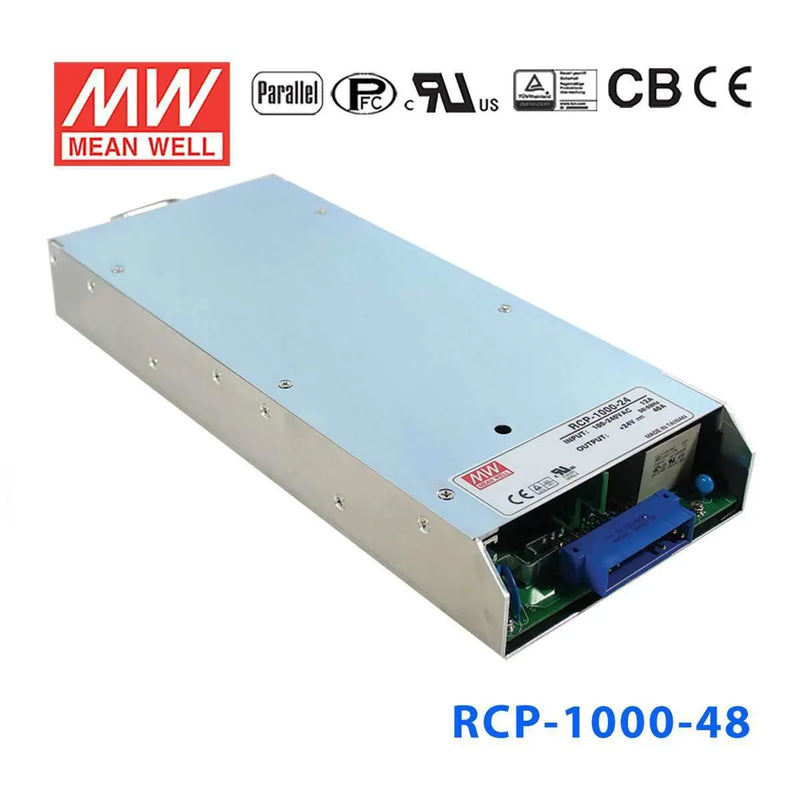

RCP-1000-48

Name: RCP-1000-48
Brand: MEAN WELL
Price: 318.76 USD
Availability: OutOfStock

$318.76

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$302.82

20+

$296.45

50+

$290.07

100+

$283.70

200+

$277.32

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

21A

Power Rating

1008W

Waterproof

Non-waterproof

Dimensions

11.61 x 5 x 1.61 in

Weight

4.25 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Built-in 5V/0.3A standby power

Built-in active PFC function

Protections: Short circuit / Over current / Over voltage / Over temperature

Forced air cooling by built-in DC fan

High power density 10.7W/inch2

1U low profile: 44mm

Output voltage can be trimmed between 90% ~ 110% of the rated output voltage

Active current sharing up to 3000W (3 units) in one 19"" rack, 3 racks max. can be operated in parallel (up to 8 units)

Remote control for single unit

Built-in remote sense function

Hot-swap operation

Internal OR-ing diode

AC OK and DC OK signal output

Optional I2C serial data bus

3 years warranty

General Specification

AC input voltage range	90~264VAC
DC adjustment range	±3% rated output voltage
Overload protection	105%~125% constant current limiting, auto-recovery
Over voltage protection	110%~135% rated output voltage
Setup, rise, hold up time	1000ms, 60ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1 minute
Working temperature	-20~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61204-3, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Dimension (LxWxH) (mm)	295x 127x 41 mm
Packing	1.91kg (single unit of RCP-1000); 12.3kg (empty rack)
CASE:	952A
