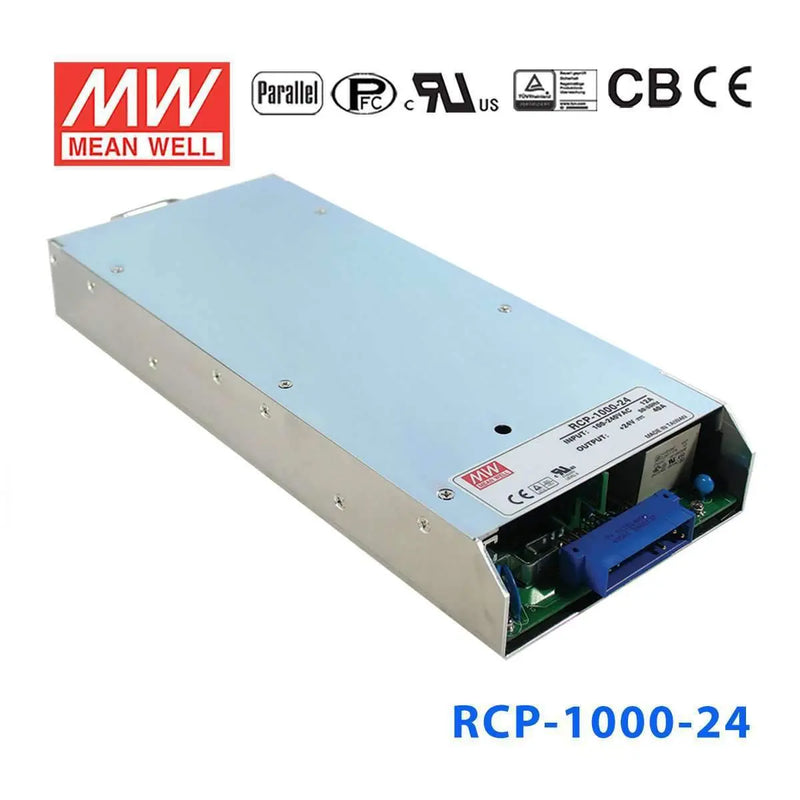

MEAN WELL RCP-1000-24 enclosed power supply
Manufacturer MEAN WELL

RCP-1000-24

Availability: Out of stock
960 W24 V40 A90V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

RCP-1000-24
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$318.76 USD
10+
$302.82 USD
20+
$296.45 USD
50+
$290.07 USD
100+
$283.70 USD
200+
$277.32 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
24V
Rated Current
40A
Power Rating
960W
Waterproof
Non-waterproof
Dimensions & Weight
11.61 x 5 x 1.61 in4.25 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Built-in 5V/0.3A standby power
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 10.7W/inch2
1U low profile: 44mm
Output voltage can be trimmed between 90% ~ 110% of the rated output voltage
Active current sharing up to 3000W (3 units) in one 19"" rack, 3 racks max. can be operated in parallel (up to 8 units)
Remote control for single unit
Built-in remote sense function
Hot-swap operation
Internal OR-ing diode
AC OK and DC OK signal output
Optional I2C serial data bus
3 years warranty

General Specification

AC input voltage range 90~264VAC
DC adjustment range ±3% rated output voltage
Overload protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 110%~135% rated output voltage
Setup, rise, hold up time 1000ms, 60ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1 minute
Working temperature -20~+60°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61204-3, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Dimension (LxWxH) (mm) 295x 127x 41 mm
Packing 1.91kg (single unit of RCP-1000); 12.3kg (empty rack)
CASE: 952A

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
