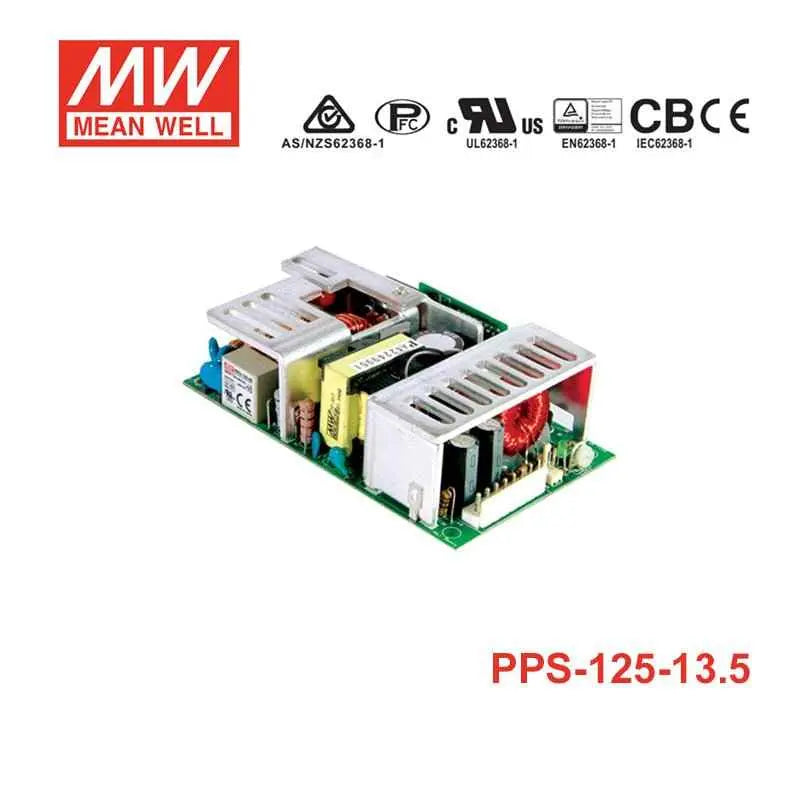

PPS-125-13.5

Name: PPS-125-13.5
Brand: MEAN WELL
Price: 25.31 USD
Availability: OutOfStock

$25.31

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$24.04

20+

$23.54

50+

$23.03

100+

$22.53

200+

$22.02

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

13.5V

Rated Current

7.5A

Power Rating

101.25W

Waterproof

Non-waterproof

Dimensions

5 x 3 x 1.36 in

Weight

0.81 lbs

Features

Universal AC input / Full range

Built-in active PFC function

ProtectionsL Short circuit / Overload / Over voltage

PWM control and regulated

High power density 6.117W/inch³

Built-in remote sense function

LED indicator for power on

100% full load burn-in test.

125W with 18CFM FAN

5"x3" compact size

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 1.0%
Overload protection Range	130 ~ 160% rated output power
Overload protection Type	Fold back current limiting, recovers automatically after fault condition is removed
Over-voltage protection	Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage	I/P-O/P:3KVAC \| I/P-FG:2KVAC \| O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-20 ~ +70 (Refer to "Derating Curve")
Safety standards	UL62368-1, TUV EN62368-1, AS/NZS 62368.1 approved
Dimension (LxWxH) (mm)	12776.234.6mm (LWH)
Packing	0.37Kg; 36pcs/14.3Kg/0.96CUFT
