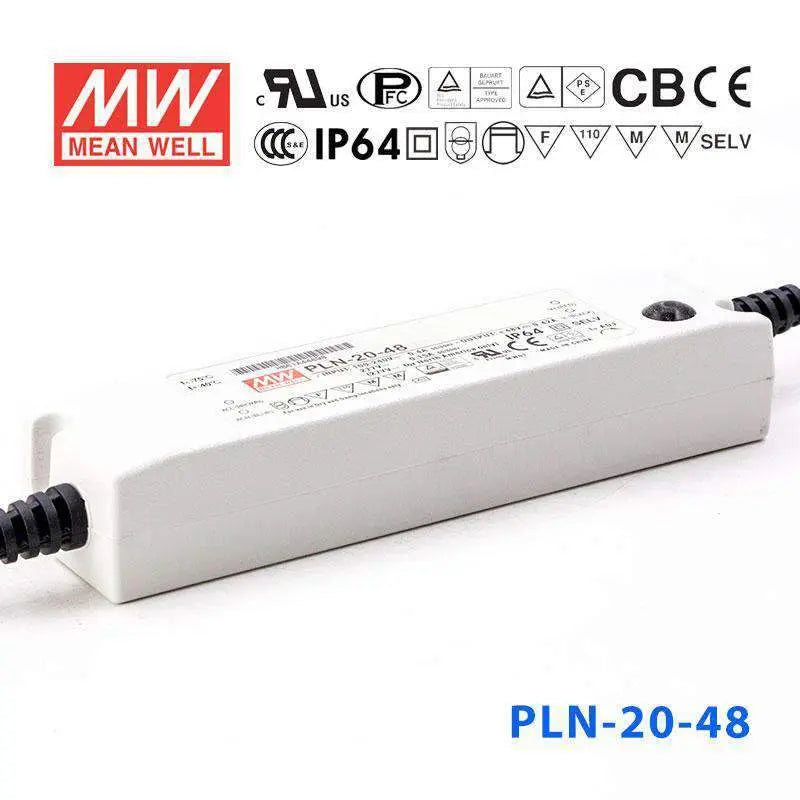

PLN-20-48

Name: PLN-20-48
Brand: MEAN WELL
Price: 22.43 USD
Availability: OutOfStock

$22.43

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$21.31

20+

$20.86

50+

$20.41

100+

$19.96

200+

$19.51

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

0.42A

Power Rating

20.2W

Waterproof

IP64

Dimensions

5.84 x 1.51 x 1.10 in

Weight

0.39 lbs

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~277VAC; 127~392VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	None
Current adjustment range	75%~100%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	105%~142% rated output voltage
Setup, rise, hold up time	2300ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-30~+60ºC
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN55022 class B (PLN-60/100 only), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, UL1015 18AWGx2C (32cm)
Connection Output	UL rated, UL1015 18AWGx2C (32cm)
Dimension (LxWxH) (mm)	148.5x 38.5x 28
