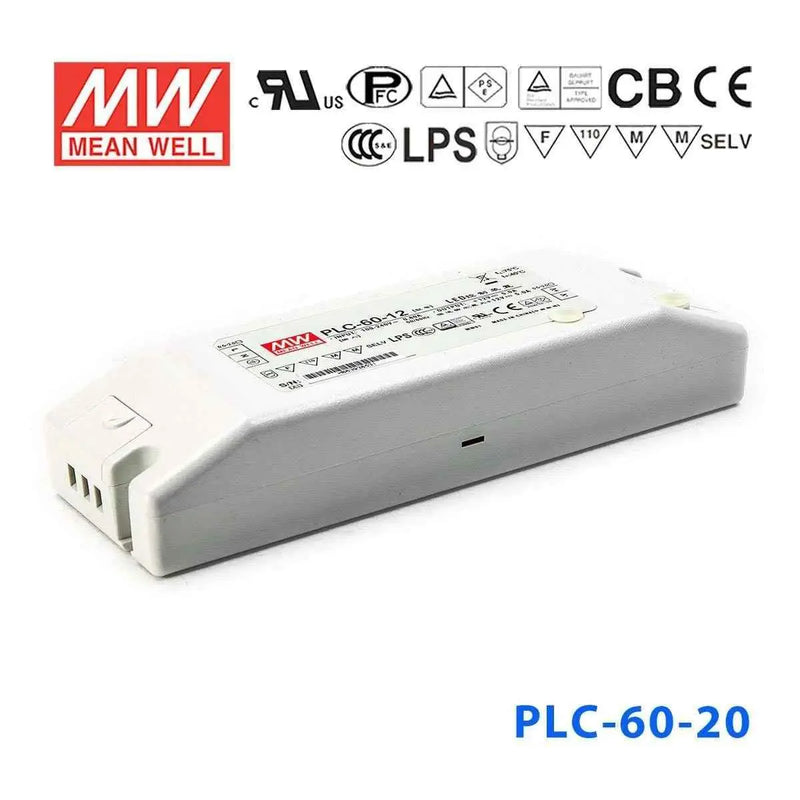

PLC-60-20

Name: PLC-60-20
Brand: MEAN WELL
Price: 32.32 USD
Availability: OutOfStock

$32.32

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$30.70

20+

$30.06

50+

$29.41

100+

$28.76

200+

$28.12

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

20V

Rated Current

Power Rating

60W

Waterproof

Non-waterproof

Dimensions

7.14 x 2.44 x 1.37 in

Weight

0.90 lbs

Features

Universal AC input / Full range

Fully isolated plastic case with screw terminal style of I/O

Built-in constant current limiting circuit (C.V.+C.C. mode)

Adjustable output voltage and current level

Built-in active PFC function, PF>0.9 for 75% of load or higher

High efficiency up to 89%

Class 2 power unit / Pass LPS

Protections: Short circuit / Over current / Over voltage / Over temperature

100% full load burn-in test

Suitable for LED lighting and moving sign applications

Cooling by free air convection

2 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	90%~110% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	115%~140% rated output voltage
Setup time	1500ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-30~+50°C (refer to output derating curve)
Safety standards	UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only
EMC standards	EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection (Input / Output)	3+2P screw terminal block
Dimension (LxWxH)(mm)	181.5x 62x 35
Packing	0.41kg ; 30pcs / 13.3kg
