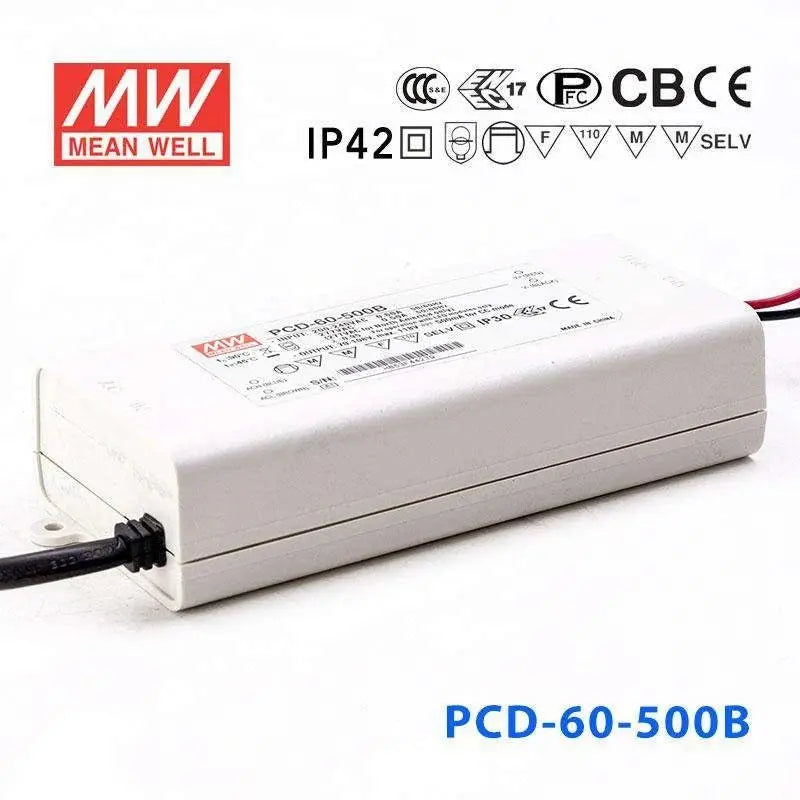

PCD-60-500B

Name: PCD-60-500B
Brand: MEAN WELL
Price: 24.78 USD
Availability: OutOfStock

$24.78

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$23.54

20+

$23.05

50+

$22.55

100+

$22.05

200+

$21.56

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

108V

Rated Current

0.5A

Power Rating

54W

Waterproof

Non-waterproof

Dimensions

5.03 x 2.36 x 1.24 in

Weight

0.77 lbs

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers

115VAC or 230VAC input

Protections: Short circuit / Over temperature

Constant current design

Class 2 power unit / Pass LPS

Isolation class II, no FG

Fully isolated plastic case

Cooling by free air convection

Built-in active PFC function

IP42 design

3 years warranty

General Specification

AC input voltage range	115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 10A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Working temperature	-30 ~ + 60ºC (refer to output derating curve)
Safety standards	ENEC EN61347-1, EN61347-2-13 independent, EN62384approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	H03VVH2-F 0.75mm²x2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	128x 60x 31.5
