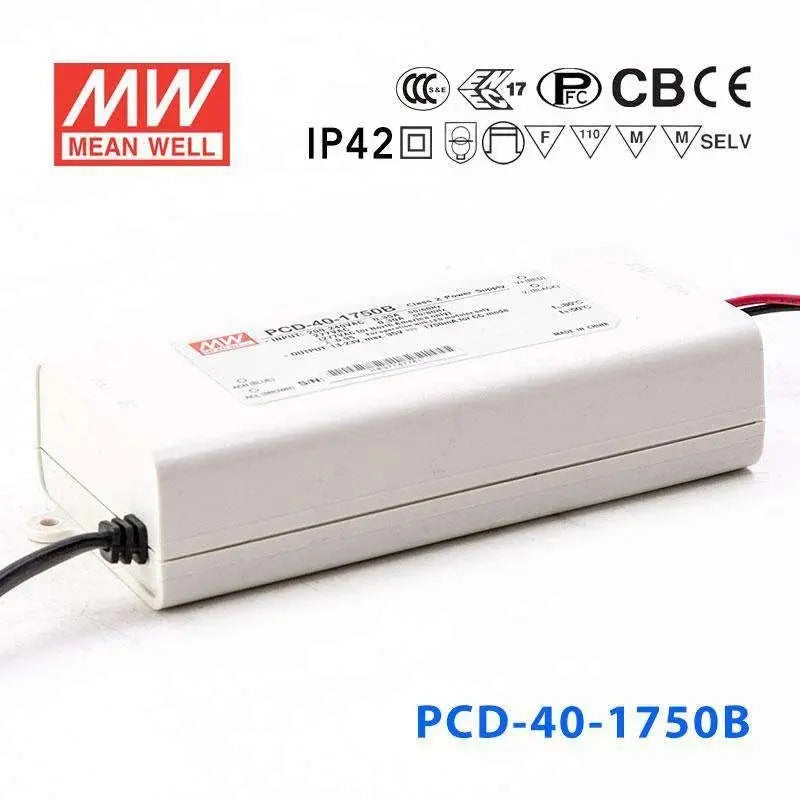

PCD-40-1750B

Name: PCD-40-1750B
Brand: MEAN WELL
Price: 23.56 USD
Availability: OutOfStock

$23.56

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$22.38

20+

$21.91

50+

$21.44

100+

$20.97

200+

$20.50

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

23V

Rated Current

1.75A

Power Rating

40.25W

Waterproof

Non-waterproof

Dimensions

5.03 x 2.36 x 1.24 in

Weight

0.50 lbs

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers

230VAC input only

Protections: Short circuit / Over temperature

Constant current design (CC mode)

Class 2 power unit

Isolation class II, no FG

Fully isolated plastic case

Cooling by free air convection

Built-in active PFC function

IP30 design

3 years warranty

General Specification

AC input voltage range	230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 11A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Working temperature	-30 ~ + 50 ºC (refer to output derating curve)
Safety standards	UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (B-Type only) approved
EMC standards	A-Type: FCC part 18 non-consumer equipment, B-Type: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	128x 60x 31.5
