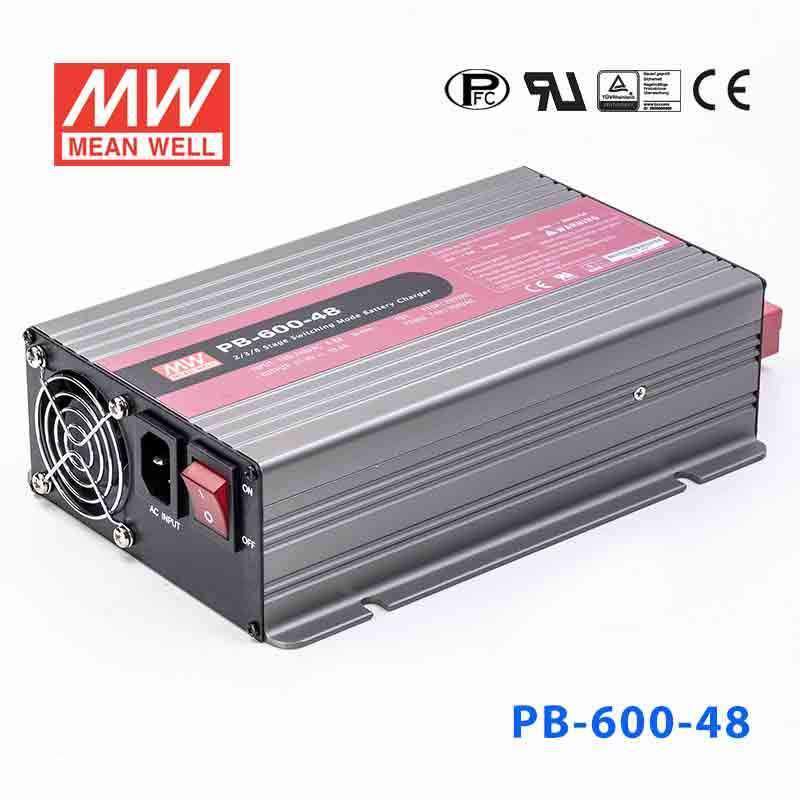

PB-600-48

Name: PB-600-48
Brand: MEAN WELL
Price: 227.89 USD
Availability: OutOfStock

$227.89

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$216.50

20+

$211.94

50+

$207.38

100+

$202.82

200+

$198.26

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

57.6V

Rated Current

10.5A

Power Rating

600W

Waterproof

Non-waterproof

Dimensions

9.05 x 6.22 x 2.63 in

Weight

4.85 lbs

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)

2/3/8 stage charging

Built-in battery rescue function

Controlled by micriprocessor

Universal AC input / Full range

Built-in active PFC function PF>0.95

Protection: Short circuit / Reverse polarity / Over voltage / Over temperature

3-color LED loading indicator

Built-in remote ON-OFF control

Built-in temperature compensation function

Built-in fan speed control (depends on charging current)

3 years warranty

General Specification

AC input voltage range	90 ~ 264VAC selected by switch; 127 ~ 370VDC
AC inrush current (max.)	25A/115VAC; 50A/230VAC
Over-voltage protection	Protection type: Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+60ºC(refer to output derating curve)
Safety standards	UL1012, TUV BS EN/EN60335-1, BS EN/EN60335-2-29 (except for 48V), BS EN/EN62368-1(48V only), EAC TP TC 004 approved
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH) (mm)	230 x 158 x 67mm
Packing	2.2Kg; 6pcs/14.2Kg/1.76CUFT
