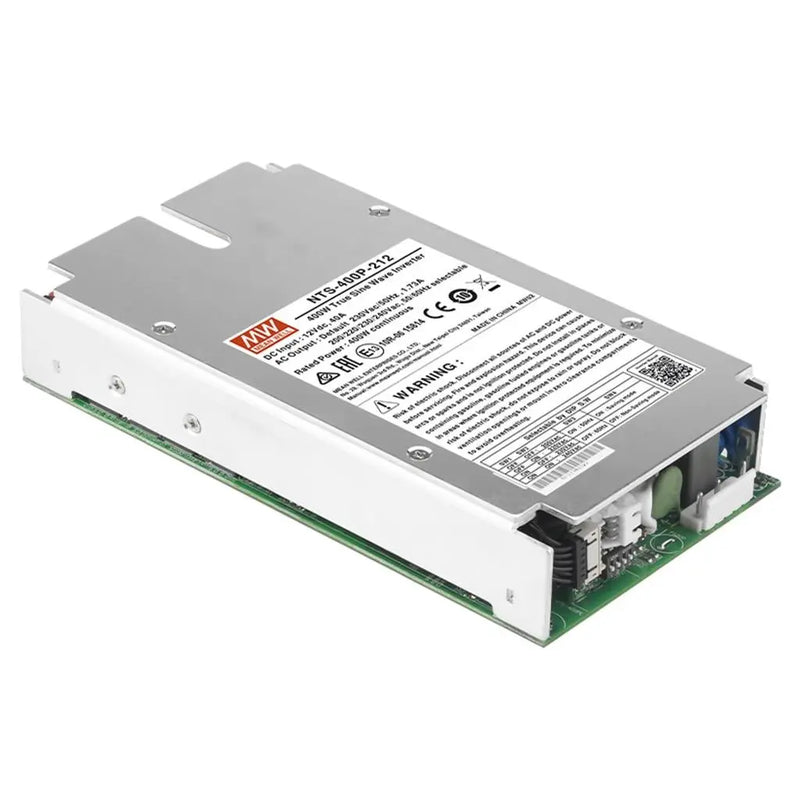

NTS-400P-224

Name: NTS-400P-224
Brand: MEAN WELL
Price: 107.06 USD
Availability: OutOfStock

$107.06

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$101.71

20+

$99.57

50+

$97.42

100+

$95.28

200+

$93.14

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

230V

Power Rating

400W

Waterproof

Non-waterproof

Dimensions

7.32 x 3.95 x 1.25 in

Weight

1.65 lbs

Features

Compact size and lightweight

True sine wave output (THD<3%)

High surge power up to 800W

250W convection, 400W forced air

AC output voltage and frequency selectable by DIP S.W

No load disspation < 1.5W max. at standby saving mode

-25℃~+70℃ wide operating temperature

Power ON-OFF remote control

Protections: Short circuit / Overload / Over voltage

Battery over-discharge protection(Low voltage disconnect)

Suitable for lead-acid or li-ion batteries

Support Tx / Rx for monitoring power inverter status

Conformal coating

3 years warranty

General Specification

AC output voltage range	100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W
AC output waveform	True sine wave, THD<3.0%
Overload temperature	Shut down o/p voltage, re-power on to recover
Overload	105~115% load for 180s, 115~150% load for 10s
Withstand voltage	DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature	-20~+70°C (refer to output derating curve )
Safety standards	CB IEC62368-1 for all models; E13, EAC TPTC004, AS/NZS 62368.1 for NTS-400P-212/224/248 approved
EMC standards	EN55032 class A, BS En/EN61000-4-2,3,8
Dimension (LxWxH)	186x100.5x32mm
Packing	18pcs / 14.5Kg
