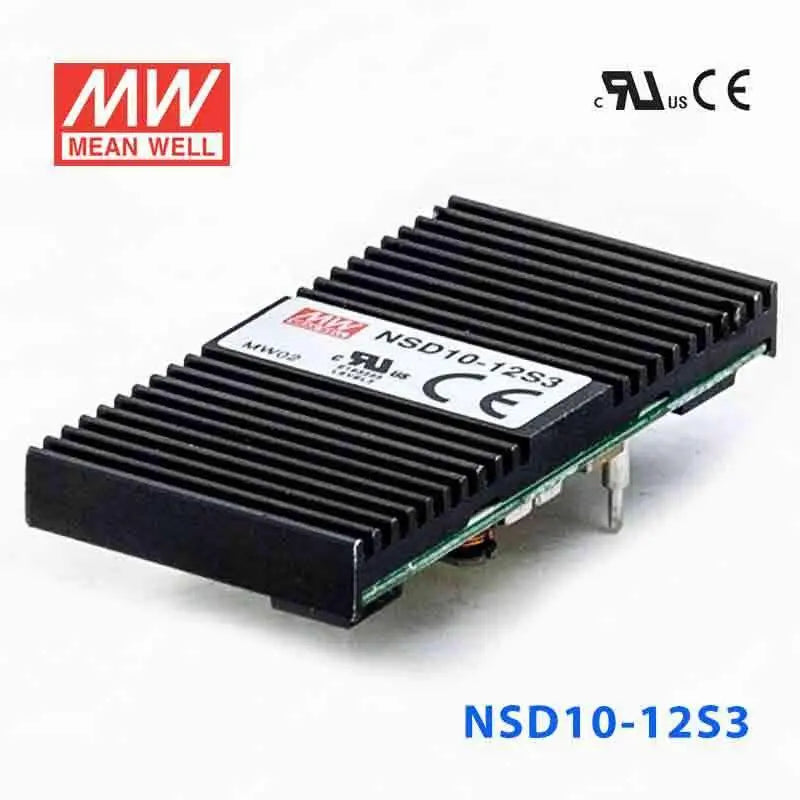

NSD10-12S3

Name: NSD10-12S3
Brand: MEAN WELL
Price: 11.44 USD
Availability: OutOfStock

$11.44

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$10.87

20+

$10.64

50+

$10.41

100+

$10.18

200+

$9.95

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

3.3V

Rated Current

2.5A

Power Rating

8.25W

Waterproof

Non-waterproof

Dimensions

2 x 1 x 0.39 in

Weight

0.04 lbs

Features

4: 1 wide input range

1000VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload / Over voltage

Built-in remote ON / OFF control

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2.0% (max.)
Line regulation	± 1% @ 10 ~ 100% load
Load regulation	± 1 ~ 3% @ 10 ~ 100% load
Efficiency	80% (typical)
Short circuit protection	Continuous, auto-recovery
Over voltage protection	Clamp @ 115 ~ 150%
Shutdown idle current	20mA
I / O isolation voltage	1000VDC
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 70°C
Storage temperature	-40 to + 85°C
Short circuit protection	Continuous, auto-recovery
Temp. Coefficient	± 0.03% / °C
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8
Safety standards	UL60950-1 approved
Dimension (LxWxH) (mm)	2" x 1" x 0.394"
Packing	0.02kg; 300pcs / 7.0kg / 0.97CUFT
