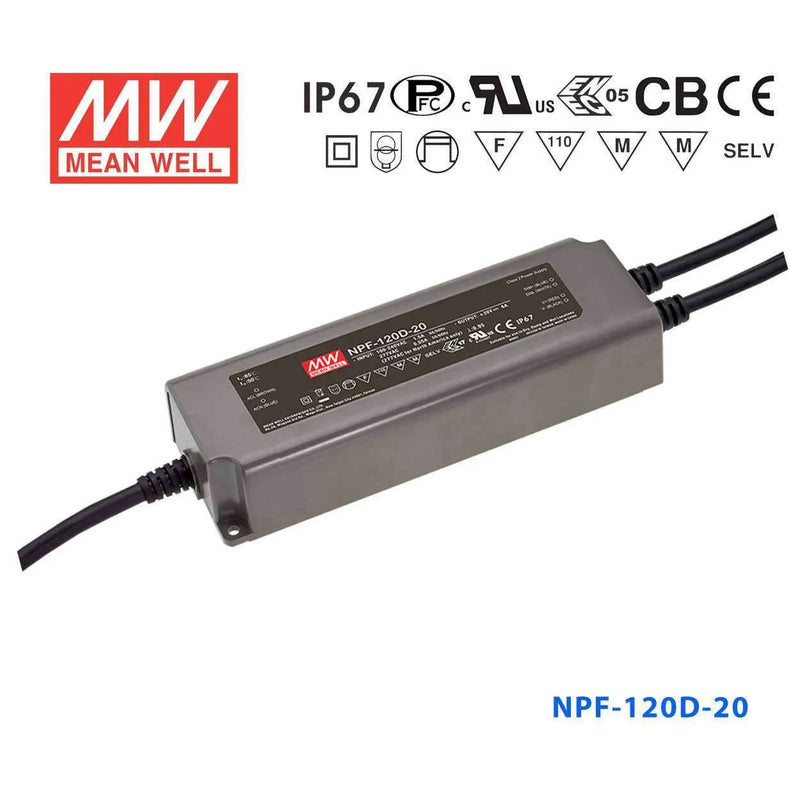

NPF-120D-20

Name: NPF-120D-20
Brand: MEAN WELL
Price: 51.19 USD
Availability: OutOfStock

$51.19

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$48.63

20+

$47.61

50+

$46.58

100+

$45.56

200+

$44.54

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

20V

Rated Current

Power Rating

120W

Waterproof

IP67

Dimensions

7.51 x 2.48 x 1.47 in

Weight

2.13 lbs

Features

Plastic housing with class II design

Built-in active PFC function

Standby power consumption <0.5W

IP67 rating for indoor or outdoor installations

Function options: 3 in 1 dimming (dim-to-off); Auxiliary DC output

Typical lifetime >50000hours

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Over current protection	95% ~108% Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection	110%~140% Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+80ºC (refer to output derating curve)
Safety standards	UL8750(type ”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,IP67 approved; Design refer to EN60335-1
EMC standards	Compliance to EN55015, EN61000-3-2 Class C (@load≥60%) ; EN61000-3-3
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SJTW 14AWGx2C (30cm) + UL2464 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	191x 63x 37.5
