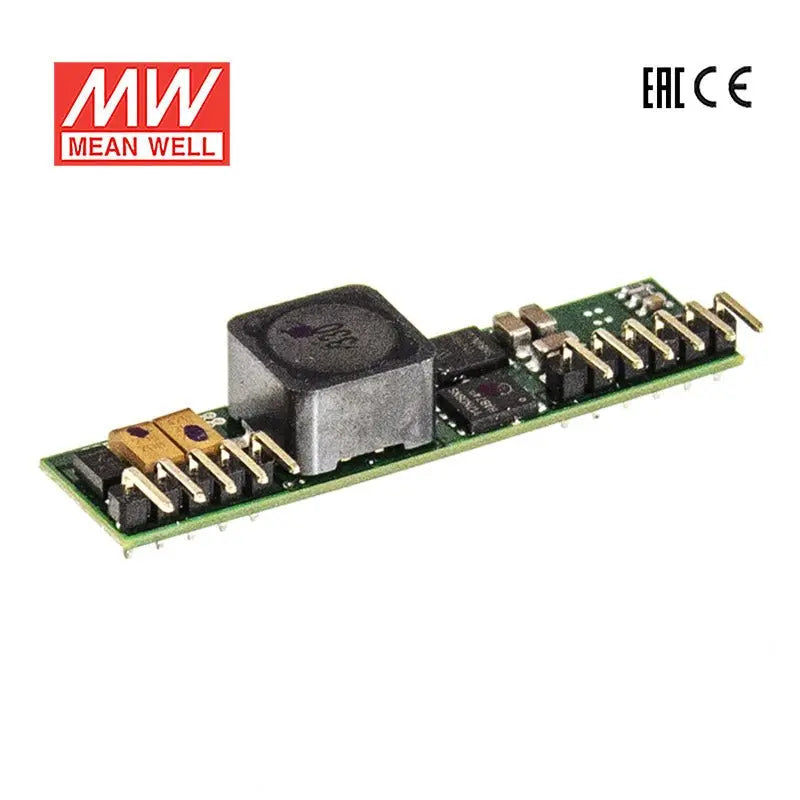

NID35-15

Name: NID35-15
Brand: MEAN WELL
Price: 10.65 USD
Availability: OutOfStock

$10.65

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$10.12

20+

$9.90

50+

$9.69

100+

$9.48

200+

$9.27

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

2.4A

Power Rating

36W

Waterproof

Non-waterproof

Dimensions

2 x 0.51 x 0.43 in

Weight

0.01 lbs

Features

Economical open frame design

Wide input range

High efficiency up to 96%

Remote ON/OFF control

Compact size 2.0"x0.512"x0.433"(SIP package)

Protection: Short circuit/Overload/Over voltage

-30~+85℃ wide working temperature

Cooling by free air convection

Comply to BS EN/EN55032 Class A without additional components

Trimming output (optional)

3 years warranty

General Specification

Over Voltage Protection	upto 150%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Protection type: Hiccup mode, recovers automatically after the fault condition is removed
Working temperature	-30°C to +85°C
EMC	Compliance to EN55032 class A, EN61000-4-3,4,5,6
Temp. Coefficient	±0.03% / ℃ (0 ~ 55℃)
Dimension (LxWxH) (mm)	50.81311mm (2.0"0.512"0.433" inch)
Packing	440pcs/4.96Kg
