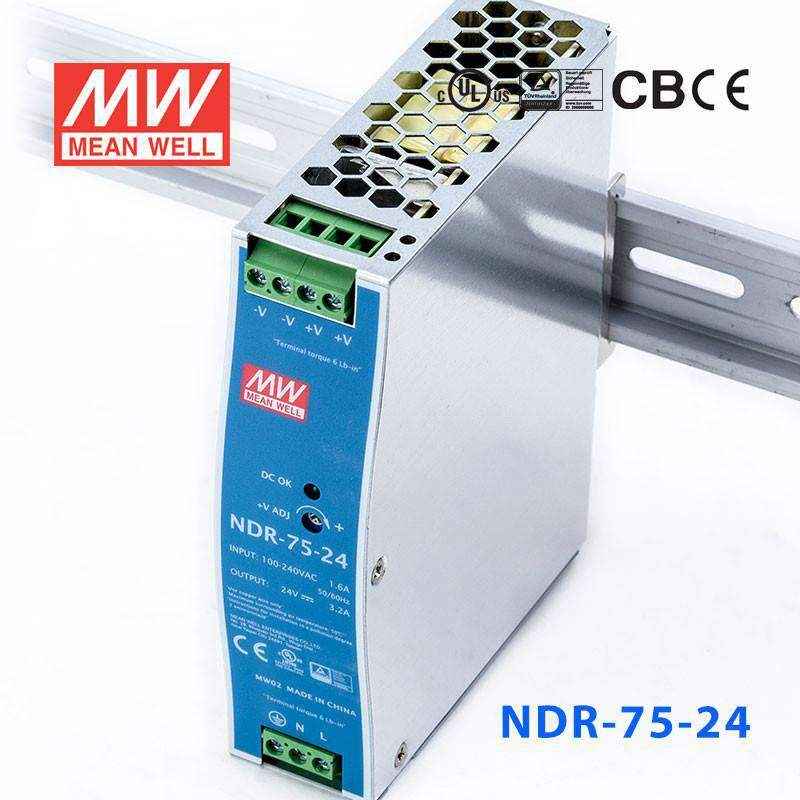

NDR-75-24

Name: NDR-75-24
Brand: MEAN WELL
SKU: 7037946
Price: 27.45 USD
Availability: InStock

$27.45

Availability: ✔ 84 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$26.08

20+

$25.53

50+

$24.98

100+

$24.43

200+

$23.88

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

3.2A

Power Rating

75W

Waterproof

Non-waterproof

Dimensions

4.02 x 1.26 x 4.93 in

Weight

0.51 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The NDR-75-24 is a compact 75W slim DIN rail power supply designed for industrial automation systems, control cabinets, process control equipment, and building automation applications requiring a stable 24VDC output. The unit supports a universal AC input range of 90–264VAC and features a narrow housing design that maximizes available panel space. Designed with high efficiency and fanless operation through natural air convection cooling, it delivers reliable performance and long operational life. Comprehensive protection features including short circuit, overload, overvoltage, and overtemperature protection ensure safe and stable operation in demanding industrial environments. Its rugged DIN rail design provides easy installation and dependable operation for industrial systems.

General Specifications

Parameter	Specification
Model	NDR-75-24
Series	NDR-75
Power Rating	75W
Output Voltage	24VDC
Rated Current	3.2A
Input Voltage Range	90–264VAC
Input Frequency	47–63Hz
Efficiency (Typical)	89%
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	-20°C to +70°C
Cooling Method	Free Air Convection
Mounting	DIN Rail TS-35/7.5 or TS-35/15
Dimensions	32 × 102 × 125.2mm
Weight	0.51kg
Protection	Short Circuit / Overload / Over Voltage / Over Temperature
Certifications	UL, TUV, CE, EAC, CB
