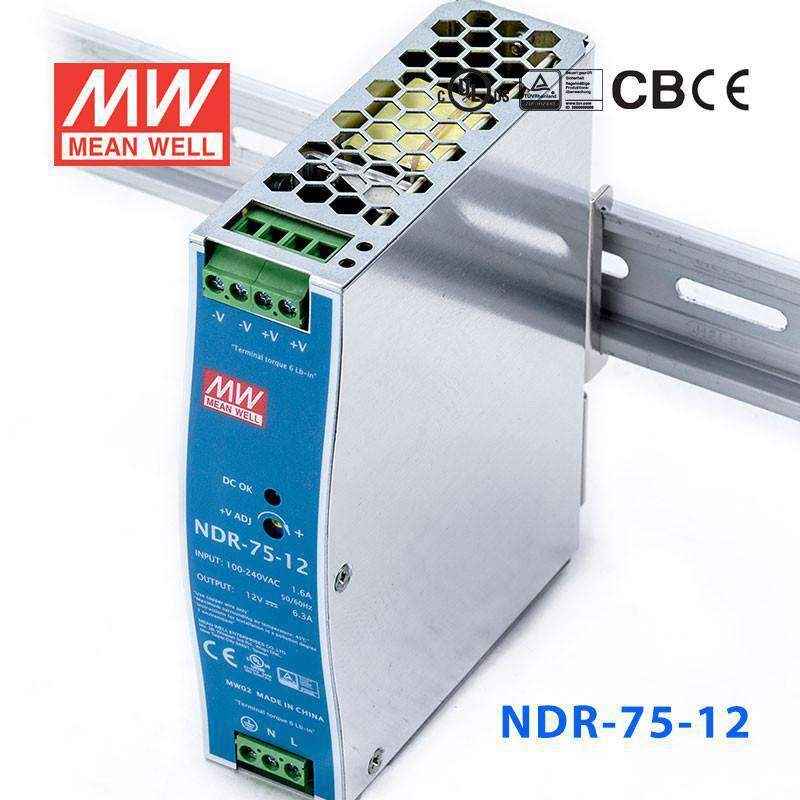

NDR-75-12

Name: NDR-75-12
Brand: MEAN WELL
SKU: 7037945
Price: 27.45 USD
Availability: InStock

$27.45

Availability: ✔ 84 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$26.08

20+

$25.53

50+

$24.98

100+

$24.43

200+

$23.88

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

Power Rating

75W

Waterproof

Non-waterproof

Dimensions

4.02 x 1.26 x 4.93 in

Weight

0.51 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The NDR-75-12 is a compact 75W slim DIN rail power supply designed for industrial automation systems, control panels, building automation, and process control applications requiring a stable 12VDC output. The unit supports a universal input range of 90–264VAC and features a narrow housing design to optimize cabinet space utilization. Designed with high efficiency and fanless operation using natural air convection cooling, it delivers reliable long-term performance while minimizing power loss. The power supply includes comprehensive protection features such as short circuit, overload, overvoltage, and overtemperature protection for enhanced system safety and reliability. Its compact DIN rail design and rugged construction make it ideal for industrial environments.

General Specifications

Parameter	Specification
Model	NDR-75-12
Series	NDR-75
Power Rating	75W
Output Voltage	12VDC
Rated Current	6A
Input Voltage Range	90–264VAC
Input Frequency	47–63Hz
Efficiency (Typical)	86%
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	-20°C to +70°C
Cooling Method	Free Air Convection
Mounting	DIN Rail TS-35/7.5 or TS-35/15
Dimensions	32 × 102 × 125.2mm
Weight	0.51kg
Protection	Short Circuit / Overload / Over Voltage / Over Temperature
Certifications	UL, TUV, CE, EAC, CB
