MPS-200-12

Name: MPS-200-12
Brand: MEAN WELL
Price: 134.48 USD
Availability: OutOfStock

$134.48

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$127.76

20+

$125.07

50+

$122.38

100+

$119.69

200+

$117.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

16.7A

Power Rating

200W

Waterproof

Non-waterproof

Dimensions

7 x 4.22 x 1.39 in

Weight

1.45 lbs

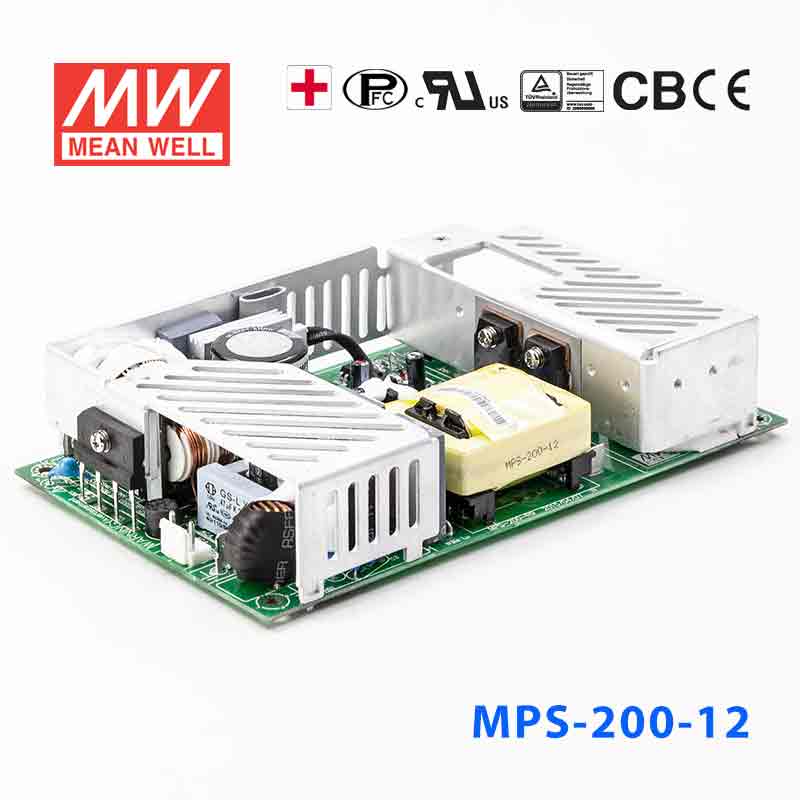

MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.

Features

Universal AC input
Full range
Low leakage Current<180uA
Protections:
Short circuit
Overload/Over voltage/Over temperature
Free air convection for 140W and forced air convection 200W
ANSI/AAMIES60601-1 medical safety approved
With power good and fail signal output
Built-in remote ON-OFF control
Built-in remote sense function
Fixed switching frequency at 100KHz
3 years warranty

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
