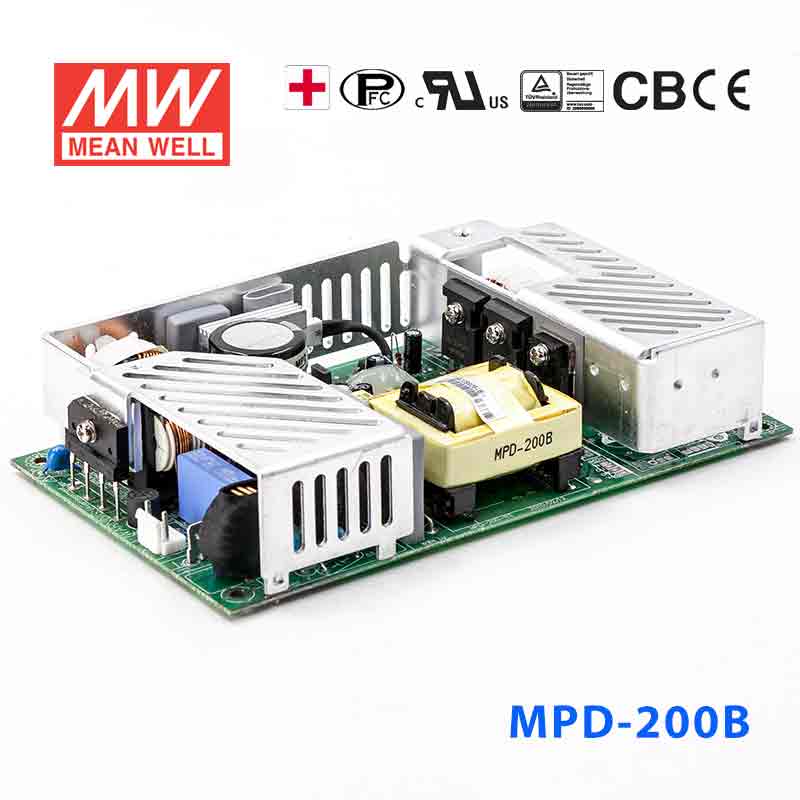

MPD-200B MEAN WELL Power Supply | HTD Electronics
MEAN WELL

MPD-200B

Manufacturer Model Name
Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

MPD-200B
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$126.95 USD
10+
$120.60 USD
20+
$118.06 USD
50+
$115.52 USD
100+
$112.99 USD
200+
$110.45 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
5V
Rated Current
15A
Power Rating
200W
Waterproof
Non-waterproof
Dimensions
7 x 4.22 x 1.39 in
Weight
1.45 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

MEAN WELL MPD-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.

Features

  • Universal AC input
  • Full range
  • Low leakage Current<180uA
  • Protections:
  • Short circuit
  • Overload/Over voltage/Over temperature
  • Free air convection for 140W and forced air convection 200W
  • ANSI/AAMIES60601-1 medical safety approved
  • With power good and fail signal output
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • Fixed switching frequency at 100KHz
  • 3 years warranty
