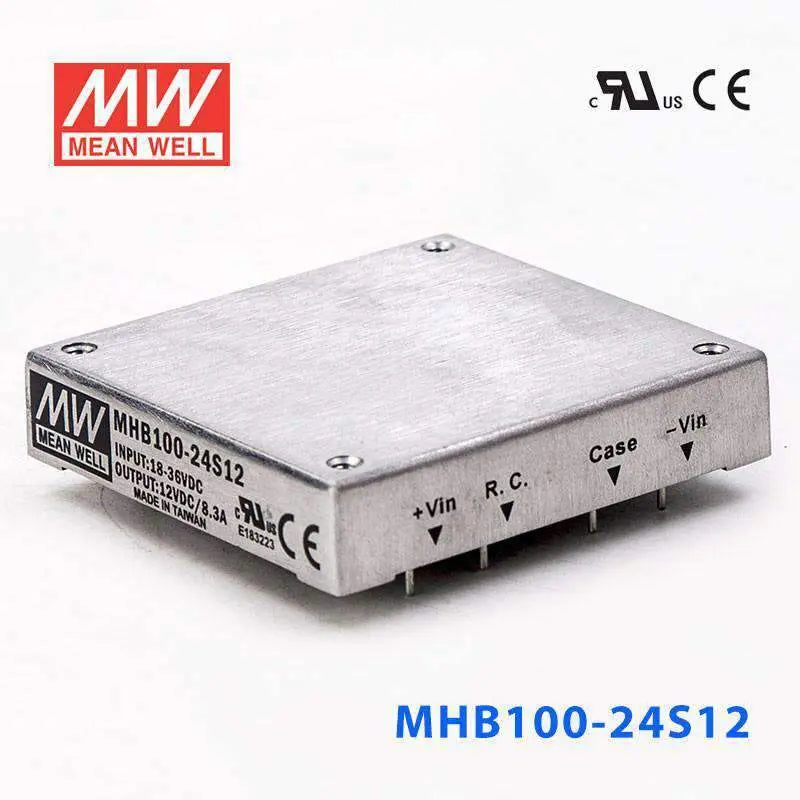

MHB100-24S12

Name: MHB100-24S12
Brand: MEAN WELL
Price: 81.9 USD
Availability: OutOfStock

$81.90

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$77.81

20+

$76.17

50+

$74.53

100+

$72.89

200+

$71.25

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

8.3A

Power Rating

100W

Waterproof

Non-waterproof

Dimensions

2.40 x 2.27 x 0.5 in

Weight

0.20 lbs

Features

Half-brick size (2.28" 2.4" 0.5") with industry standard pin out

2:1 wide input range

Protections: Short circuit / Over current / Over voltage / Over temperature

High efficiency up to 89%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense function

Trimming output ±10%

Five-sided shield metal case

Optional heat sinks for extended operating temperature

Output 2.5V/3.3V/15V available

Approvals: UL / CUL / CE

3 years warranty

General Specification

Over current protection	110%~140% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed
Over temperature protection	Case temperature 100°C±5°C, Over temperature protection enabled
Over voltage protection	115%~140%; Protection mode: Output Voltage clamping by zener diode
Withstand voltage	I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC
Working temperature	-40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve)
Safety standards	UL60950-1 approved
EMC standards	With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹)
Dimension (LxWxH)(mm)	57.9 x 61 x 12.7 mm
