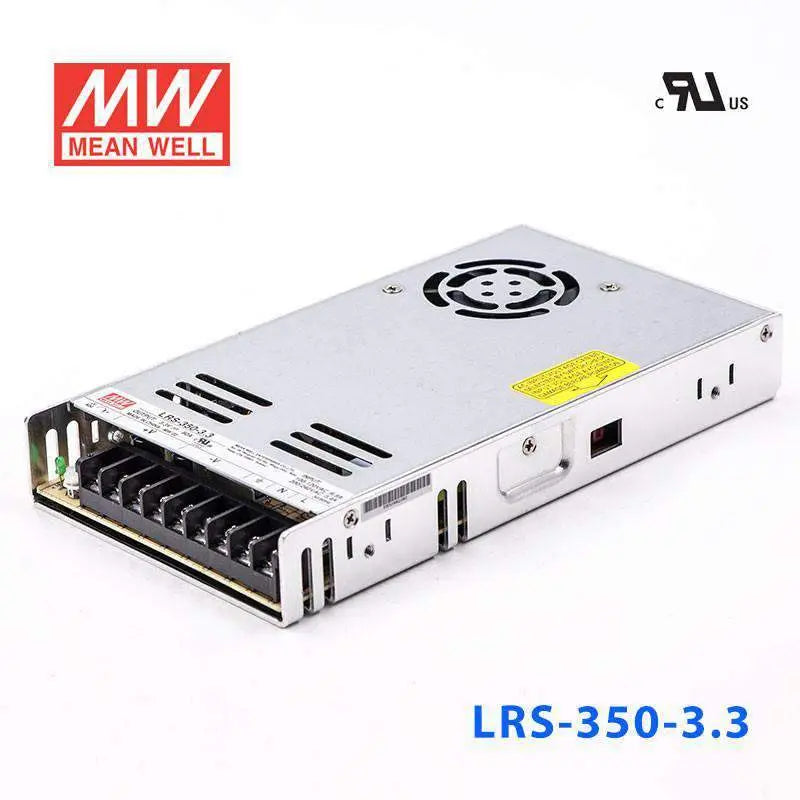

LRS-350-3.3
Manufacturer MEAN WELL

LRS-350-3.3

Availability: Out of stock
198 W3.3 V60 A90Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

LRS-350-3.3
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$39.12 USD
10+
$37.16 USD
20+
$36.38 USD
50+
$35.60 USD
100+
$34.82 USD
200+
$34.03 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
3.3V
Rated Current
60A
Power Rating
198W
Waterproof
Non-waterproof
Dimensions & Weight
8.46 x 4.52 x 1.18 in1.67 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features:

No load power consumption <0.5W for 150W;Ā  <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections:Ā  Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W);Ā  forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) andĀ  IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty


General SpecificationĀ

AC input voltage range 115 / 230VAC by switch
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range Ā±10% by potentiometer
Overload protection Range 110%~140%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145% rated output voltage
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -25~+70Ā°C (refer to output derating curve)
Safety standards UL60950-1 approved
EMC standards Design refer to EN55022 class A
Connection 9P/9.5mm pitch terminal block
Dimension (LxWxH) 215x 115x 30
