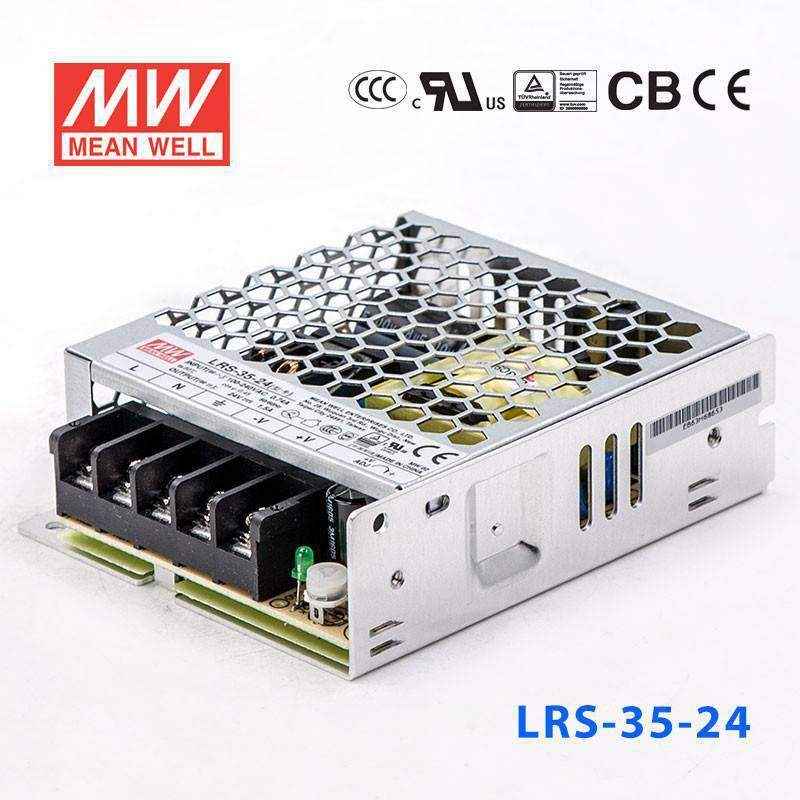

LRS-35-24

Name: LRS-35-24
Brand: MEAN WELL
SKU: 713263
Price: 10.3 USD
Availability: InStock

$10.30

Availability: ✔ 98 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$9.79

20+

$9.58

50+

$9.37

100+

$9.17

200+

$8.96

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

1.5A

Power Rating

36W

Waterproof

Non-waterproof

Dimensions

3.90 x 3.23 x 1.18 in

Weight

0.23 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The LRS-35-24 is a compact 36W enclosed AC/DC switching power supply designed for industrial equipment, automation systems, LED applications, and electronic devices requiring a stable 24VDC output. With a slim 30mm low-profile design and universal AC input capability of 85–264VAC, this power supply delivers reliable performance while maintaining high efficiency and low standby power consumption. The fanless design utilizes natural air convection cooling for silent operation and improved reliability. Built-in protection features including short circuit, overload, overvoltage, and overtemperature protection ensure safe and stable operation in demanding environments. Its compact size makes it an excellent solution for space-constrained installations.

General Specifications

Parameter	Specification
Model	LRS-35-24
Series	LRS-35
Power Rating	36W
Output Voltage	24VDC
Rated Current	1.5A
Input Voltage Range	85–264VAC
Input Frequency	47–63Hz
Efficiency (Typical)	89%
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	-30°C to +70°C
Cooling Method	Free Air Convection
Dimensions	99 × 82 × 30mm
Weight	0.23kg
Protection	Short Circuit / Overload / Over Voltage / Over Temperature
Certifications	UL, TUV, CE, EAC, CB
