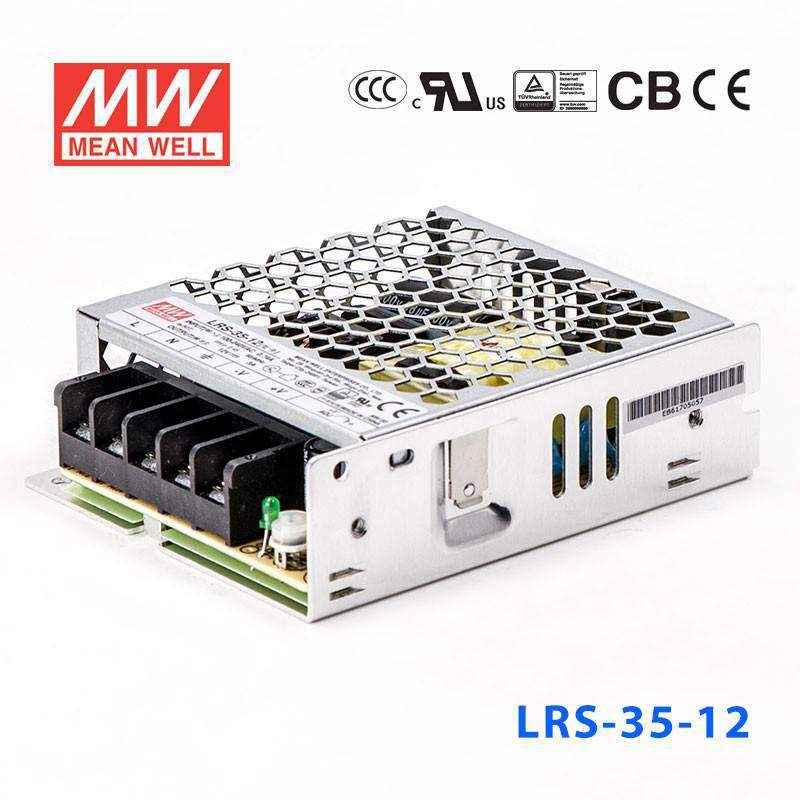

LRS-35-12

Name: LRS-35-12
Brand: MEAN WELL
SKU: 713261
Price: 10.5 USD
Availability: InStock

$10.50

Availability: ✔ 472 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$9.98

20+

$9.77

50+

$9.56

100+

$9.35

200+

$9.14

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

Power Rating

36W

Waterproof

Non-waterproof

Dimensions

3.90 x 3.23 x 1.18 in

Weight

0.23 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The LRS-35-12 is a compact 35W enclosed AC/DC switching power supply designed for industrial automation, control systems, LED applications, and electronic equipment requiring a stable 12VDC output. Featuring a low-profile 30mm design and universal AC input capability of 85–264VAC, this power supply delivers reliable operation with high efficiency and low power consumption. The fanless design utilizes natural air convection cooling for silent operation and long-term reliability. Comprehensive protection functions including short circuit, overload, overvoltage, and overtemperature protection ensure dependable performance in demanding applications. Its compact footprint makes it an ideal solution for installations where space is limited.

General Specifications

Parameter	Specification
Model	LRS-35-12
Series	LRS-35
Power Rating	36W
Output Voltage	12VDC
Rated Current	3A
Input Voltage Range	85–264VAC
Input Frequency	47–63Hz
Efficiency (Typical)	86%
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	-30°C to +70°C
Cooling Method	Free Air Convection
Dimensions	99 × 82 × 30mm
Weight	0.23kg
Protection	Short Circuit / Overload / Over Voltage / Over Temperature
Certifications	UL, TUV, CE, EAC, CB
