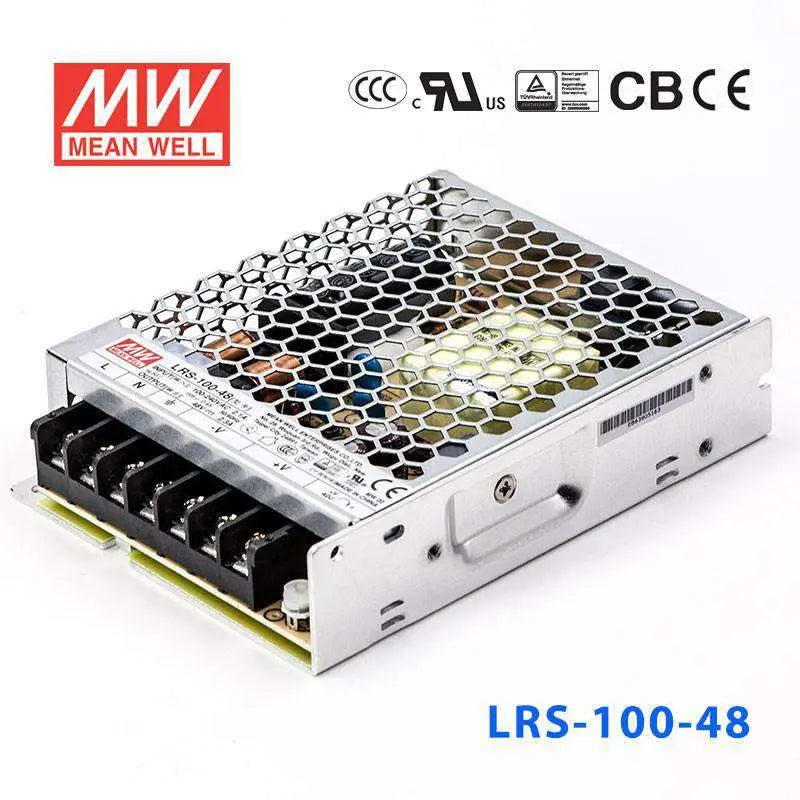

MEAN WELL LRS-100-48 enclosed power supply, 48V 2.3A 100W
LRS-100-48 specifications: 48V DC 2.3A, 110.4W, input 85-264VAC, 91% efficiency, UL62368-1
LRS-100-48 dimensions 129 x 97 x 30 mm (5.08 x 3.82 x 1.18 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL LRS-100-48 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
MEAN WELL LRS-100-48 enclosed power supply, 48V 2.3A 100W
LRS-100-48 specifications: 48V DC 2.3A, 110.4W, input 85-264VAC, 91% efficiency, UL62368-1
LRS-100-48 dimensions 129 x 97 x 30 mm (5.08 x 3.82 x 1.18 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL LRS-100-48 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
Manufacturer MEAN WELL

LRS-100-48

Availability: 93 can ship immediately
110.4 W48 V2.3 A85Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

LRS-100-48 SKU: 3246775
Quantity
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$15.36 USD
10+
$14.59 USD
20+
$14.28 USD
50+
$13.98 USD
100+
$13.67 USD
200+
$13.36 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
48V
Rated Current
2.3A
Power Rating
110.4W
Waterproof
Non-waterproof
Dimensions & Weight
5.07 x 3.81 x 1.18 in0.72 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features:

No load power consumption <0.2W for 35W/50W;Ā  <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty


General SpecificationĀ

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range Ā±10% by potentiometer
Overload protection Range 110%~150%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~135% rated output voltage
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature -30~+70Ā°C (refer to output derating curve)
Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection 7P/9.5mm pitch terminal block
Dimension (LxWxH) 129x 97x 30
SKU: 3246775

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
