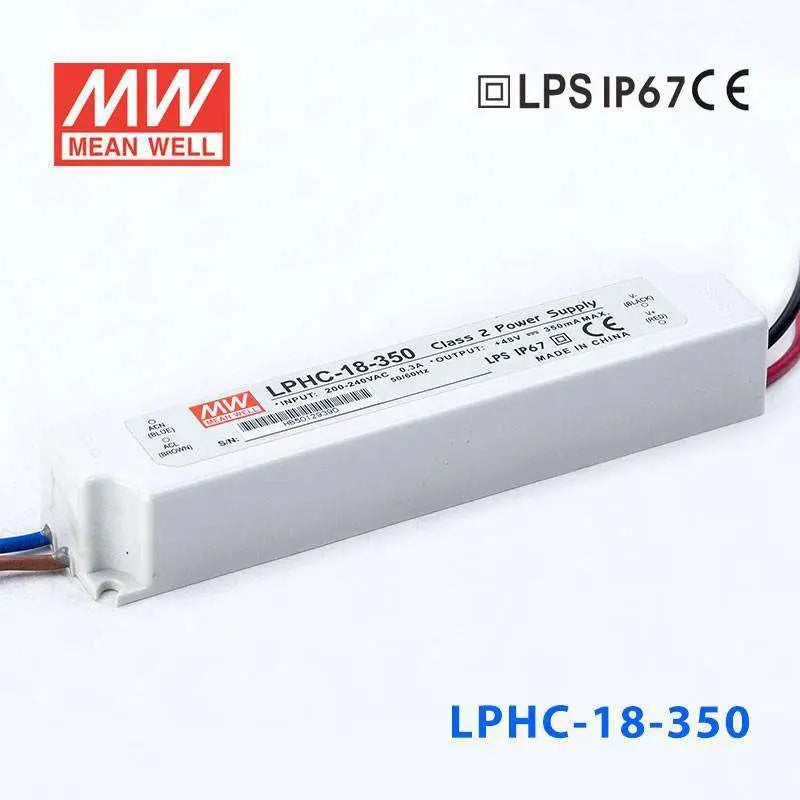

LPHC-18-350

Name: LPHC-18-350
Brand: MEAN WELL
Price: 7.61 USD
Availability: OutOfStock

$7.61

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$7.23

20+

$7.08

50+

$6.93

100+

$6.77

200+

$6.62

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

0.35A

Power Rating

16.8W

Waterproof

IP67

Dimensions

5.51 x 1.18 x 0.86 in

Weight

0.38 lbs

Features

180~264VAC input only

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage / Over temp.

Constant current design (C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range	180~264VAC
AC inrush current	Cold start, 50A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	Design refer to UL1310, EN60950-1
EMC standards	FCC part 15 class A (LPLC-18), EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	140x 30x 22
