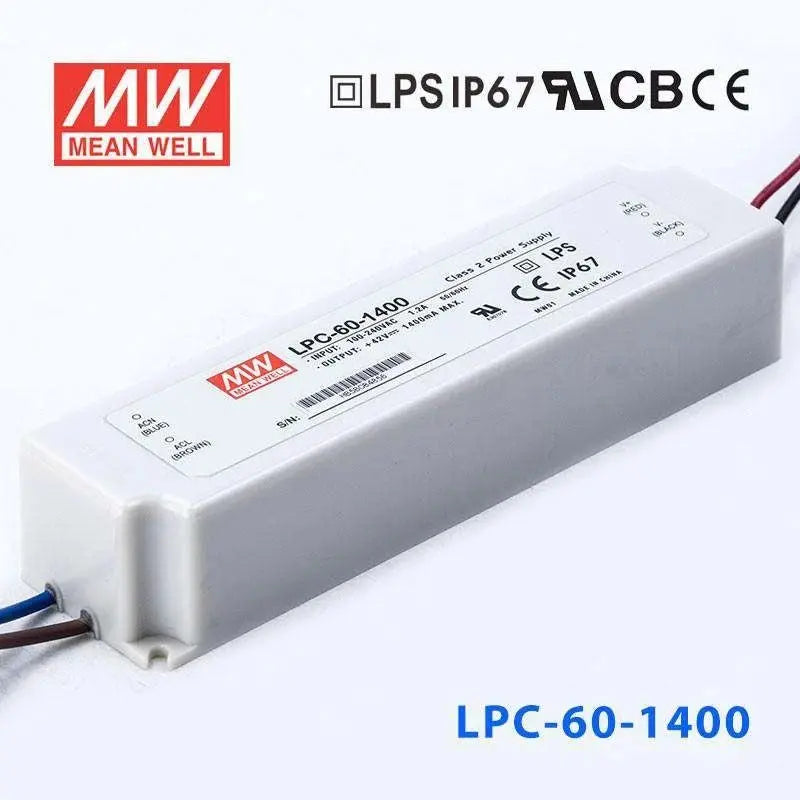

LPC-60-1400

Name: LPC-60-1400
Brand: MEAN WELL
Price: 16.12 USD
Availability: OutOfStock

$16.12

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$15.31

20+

$14.99

50+

$14.67

100+

$14.35

200+

$14.02

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

42V

Rated Current

1.4A

Power Rating

58.8W

Waterproof

IP67

Dimensions

6.39 x 1.67 x 1.25 in

Weight

0.88 lbs

Features

90~264VAC input

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage

Constant current design (C.C. mode)

Withstand 300VAC surge input for 5 seconds

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification

AC input voltage range	90~264VAC
AC inrush current	Cold start, 60A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (60cm)
Connection Output	UL rated, 16AWGx2C (60cm)
Dimension (LxWxH)(mm)	162x 42x 30
