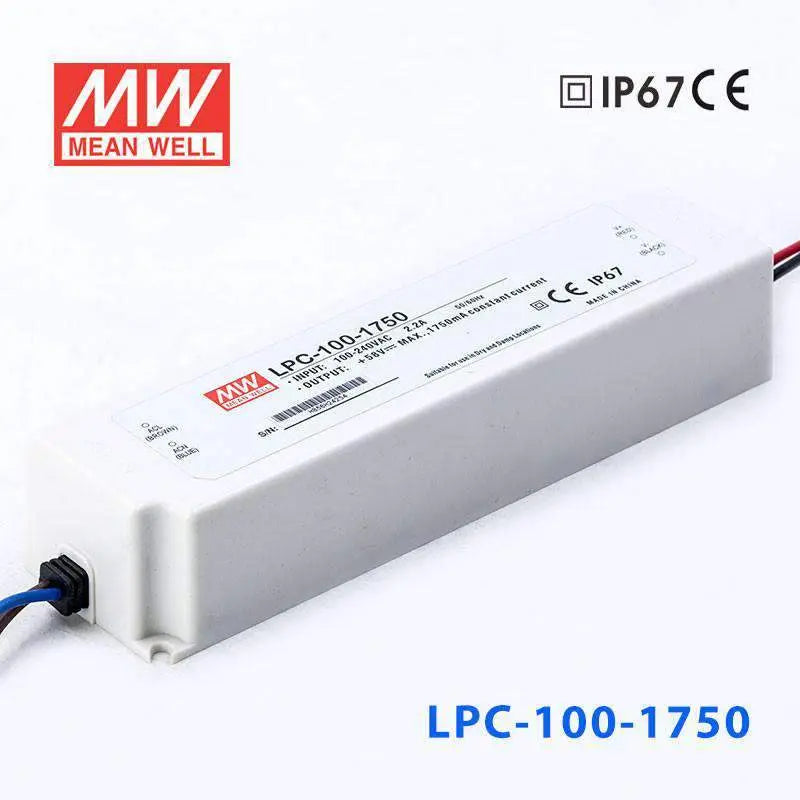

LPC-100-1750

Name: LPC-100-1750
Brand: MEAN WELL
Price: 24.43 USD
Availability: OutOfStock

$24.43

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$23.21

20+

$22.72

50+

$22.23

100+

$21.74

200+

$21.25

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

58V

Rated Current

1.75A

Power Rating

101.5W

Waterproof

IP67

Dimensions

7.48 x 2.04 x 1.45 in

Weight

1.34 lbs

Features

Universal AC input/full rauge

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage

Constant current design

Withstand 300VAC surge input for 5 seconds

High efficiency up to 90%

Class II power unit, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~264VAC
AC inrush current	Cold start, 75A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+50°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	IP67 approved;Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (30cm)
Connection Output	UL rated, 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	190x 52x 37
