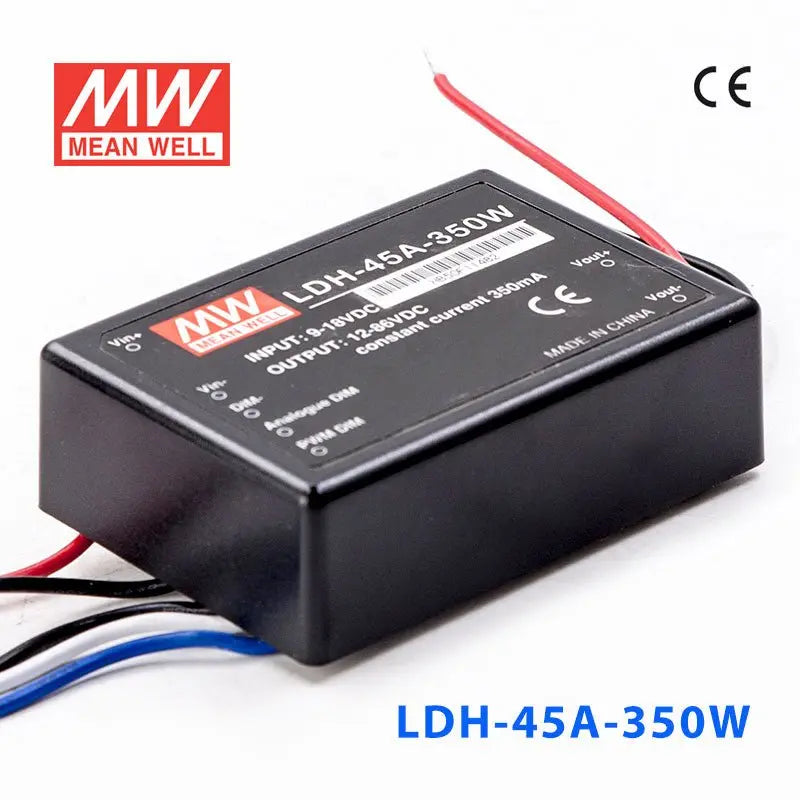

LDH-45A-350W

Name: LDH-45A-350W
Brand: MEAN WELL
Price: 17.76 USD
Availability: OutOfStock

$17.76

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$16.87

20+

$16.52

50+

$16.16

100+

$15.81

200+

$15.45

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

86V

Rated Current

0.35A

Power Rating

30.1W

Waterproof

IP67

Dimensions

2.95 x 2.08 x 0.89 in

Weight

0.04 lbs

Features

DC/DC step-up converter

Constant current output: 350ma to 1050mA

Wide output LED forward voltage up to 126VDC

High efficiency up to 95%

Built-in EMI filter, comply with BS EN/EN55015 without additional input filter and capacitors

PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]

DALI dimming [(Black)DA type or WDA type

Protections: Short circuit/ Over voltage / Under voltage

Cooling by free air convection

Fully encapsulated

3 years warranty

General Specification

Current accuracy	±5% at 12VDC input
Over-voltage protection	up to 140% output voltage
Efficiency	95.5%
Short circuit protection	Protection type: Power OFF and fuse open
Working temperature	-40 ~ +70℃ (Refer to "Derating Curve")
EMC	Compliance to EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
Dimension (LxWxH) (mm)	75 x 53 x 22.7mm
Packing	138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
