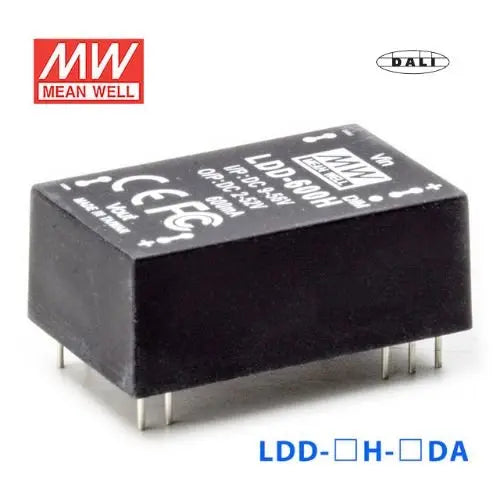

LDD-700H-WDA

Name: LDD-700H-WDA
Brand: MEAN WELL
Price: 14.26 USD
Availability: OutOfStock

$14.26

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$13.55

20+

$13.26

50+

$12.98

100+

$12.69

200+

$12.41

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

45V

Rated Current

0.7A

Power Rating

31.5W

Waterproof

IP67

Dimensions

1.59 x 0.92 x 0.39 in

Weight

0.04 lbs

Features

DC/DC step-down converter

Constant current output: 350mA to 1400mA

Wide input voltage: 6~50VDC; Wide output LED string voltage: 3~45VDC

High efficiency up to 95%

Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors

Built-in PWM and remote ON/OFF control

Protections: Short circuit

Cooling by free air convection

Fully encapsulated with IP65 level

Compact size

Suitable for driving illumination LED

3 years warranty

General Specification

Current accuracy	±5% at 48VDC input
Over temperature protection	Protection type : Shut down, recovers automatically after temperature goes down
Efficiency	95% at full load and 48VDC input
Short circuit protection	Regulated at rated output current
Working temperature	-40°C to +85°C
EMC	Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient	±0.03% / °C
Dimension (LxWxH) (mm)	40.623.510.1mm or 1.6"0.93"0.40" inch
Potting material	Expoxy(UL94-V0)
