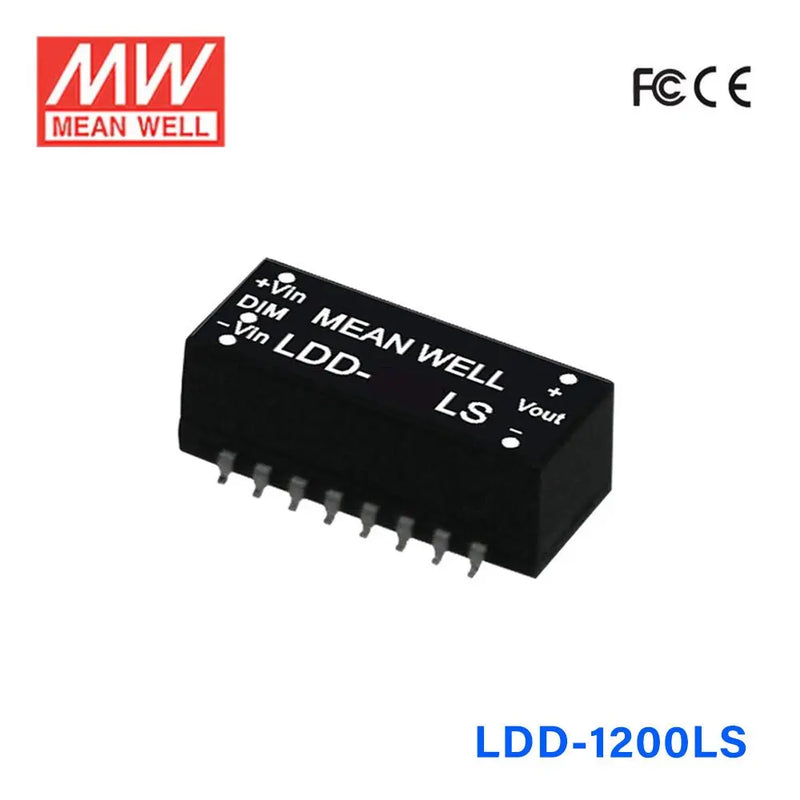

LDD-1200LS

Name: LDD-1200LS
Brand: MEAN WELL
Price: 8.75 USD
Availability: OutOfStock

$8.75

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$8.31

20+

$8.14

50+

$7.96

100+

$7.79

200+

$7.61

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

30V

Rated Current

1.2A

Power Rating

36W

Waterproof

Non-waterproof

Dimensions

1.25 x 0.79 x 0.44 in

Weight

0.04 lbs

Features

DC/DC step-down converter

Constant current output: 300mA to 700mA

Wide input voltage: 9~36VDC

Wide output LED string voltage: 2~32VDC

High efficiency up to 95%

Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors

Built-in PWM and remote ON/OFF control

Protections: Short circuit / Over Temperature

Cooling by free air convection

Fully encapsulated with IP67 level for pin and wire style

Compact size

Low cost, high reliability

Suitable for driving illumination LED

3 years warranty

General Specification

Current accuracy	±5% at 24VDC input
Over temperature protection	Protection type : Shut down, recovers automatically after temperature goes down
Efficiency	95% at full load and 24VDC/36VDC input for LDD-300~700L/LW ; 95% at full load and 24VDC input for LDD-300~700LS
Short circuit protection	Protection type: Can be continued, recovers automatically after fault condition is removed
Working temperature	-40°C to +85°C
EMC	Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient	±0.03% / °C
Dimension (LxWxH) (mm)	22.69.98.9mm or 0.89"0.39"0.35" inch for LDD-300~700L/LW ; 25.410.59.3mm or 1"0.4135"0.366" inch for LDD-300~700LS
Potting material	Expoxy(UL94-V0) for LDD-300~700L/LW ; without potted for LDD-300~700LS
