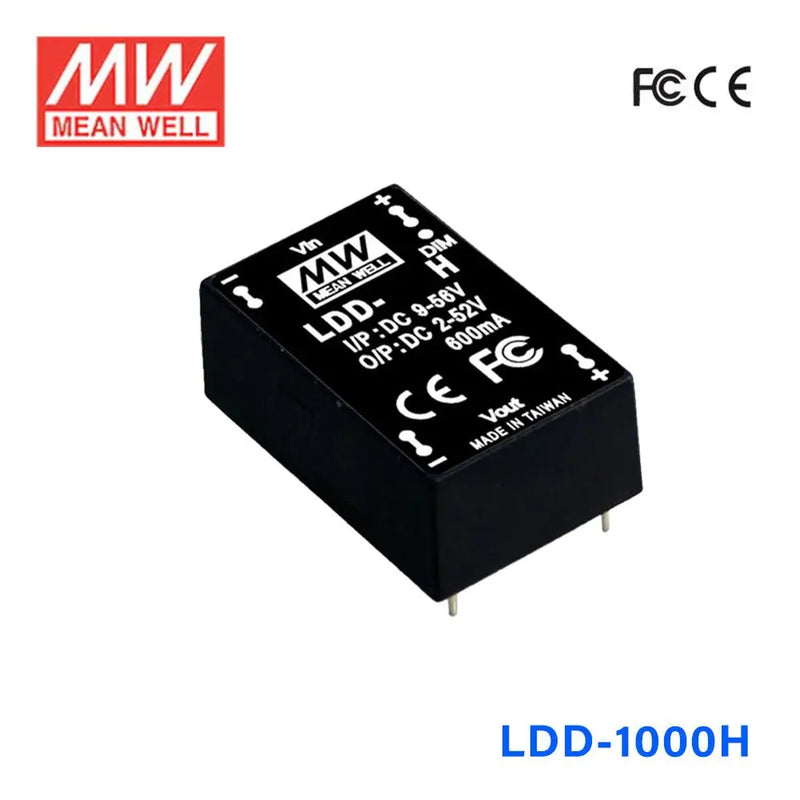

LDD-1000H

Name: LDD-1000H
Brand: MEAN WELL
Price: 9.04 USD
Availability: OutOfStock

$9.04

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$8.59

20+

$8.41

50+

$8.23

100+

$8.05

200+

$7.86

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

52V

Rated Current

Power Rating

52W

Waterproof

IP67

Dimensions

1.25 x 0.79 x 0.48 in

Weight

0.04 lbs

Features

DC/DC step-down converter

Constant current output: 300mA to 1500mA

Wide input voltage: 9~56VDC

Wide output LED string voltage: 2~52VDC

High efficiency up to 97%

Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors

Build-in PWM and remote ON/OFF control

Protections: Short circuit/Over temperature

Cooling by free air convection

Fully encapsulated with IP67 level for pin and wire style

Non-potted, optional conformal coating for SMD style(HSC type)

Compact size

Low cost, high reliability

Suitable for driving illumination LED

3 years warranty

General Specification

Current accuracy	±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS
Over temperature protection	Protection type : Shut down, recovers automatically after temperature goes down
Efficiency	97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS(typical)
Short circuit protection	Regulated at rated output current
Working temperature	-40°C to +85°C
EMC	Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Temp. Coefficient	±0.03% / °C
Dimension (LxWxH) (mm)	31.820.312.2mm or 1.25"0.8"0.48" inch for LDD-H/HW ; 31.820.311.4mm or 1.25"0.8"0.45" inch for LDD-HS
Potting material	Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS
