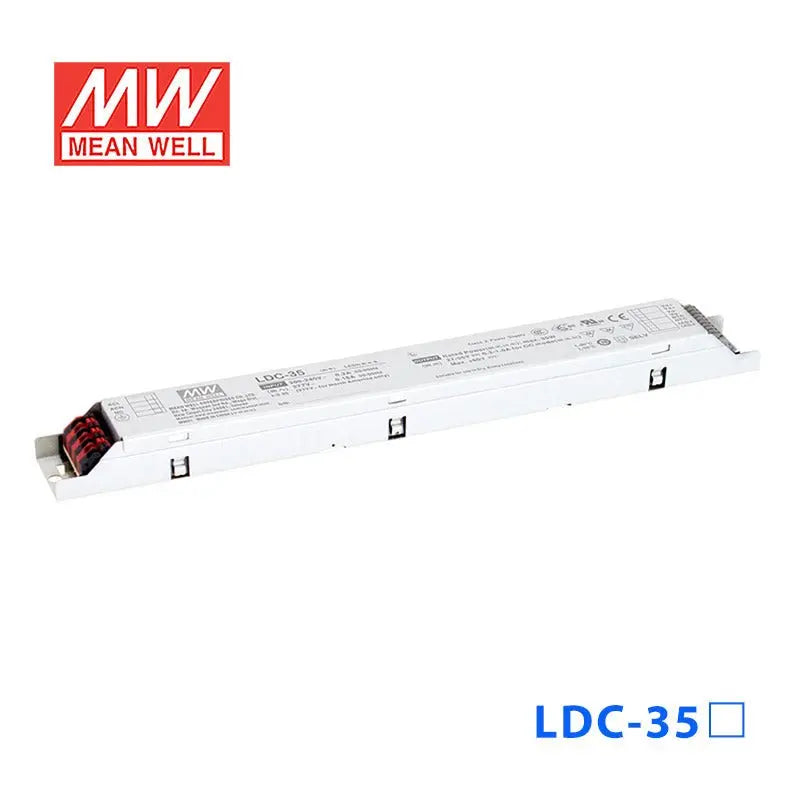

LDC-35DA

Name: LDC-35DA
Brand: MEAN WELL
Price: 26.15 USD
Availability: OutOfStock

$26.15

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$24.84

20+

$24.32

50+

$23.80

100+

$23.27

200+

$22.75

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

60V

Rated Current

0.3A

Power Rating

35W

Waterproof

Non-waterproof

Dimensions

11.02 x 1.18 x 0.82 in

Weight

0.48 lbs

Features

Constant Power mode output

Metal housing design

Full power at 70~100% max current

Built-in active PFC function

Flicker-free design

No load/standby power consumption<0.5W

Output current level pre-settable

Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming

Typical lifetime>50000 hours

SELV and isolated

Class 2 power supply

5 years warranty

General Specification

AC input voltage range	180~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode or constant current limiting recovers automatically after the fault condition is removed
Over temperature protection	Shut down o/p voltage, with auto-recovery
Setup time	500ms / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC
Working temperature	Tcase=-25 ~ +80℃
Safety standards	UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	280x30x21mm
Packing	54pcs/12.88Kg
