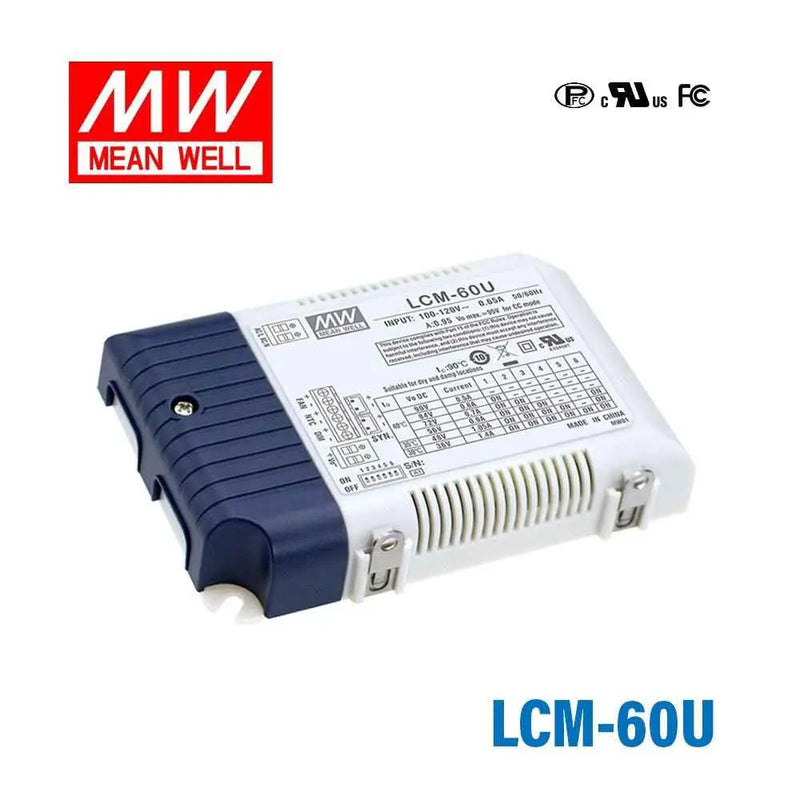

LCM-60U

Name: LCM-60U
Brand: MEAN WELL
Price: 34.59 USD
Availability: OutOfStock

$34.59

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$32.86

20+

$32.17

50+

$31.48

100+

$30.79

200+

$30.09

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

76V

Rated Current

0.7A

Power Rating

50.4W

Waterproof

Non-waterproof

Dimensions

4.86 x 0.90 x 3.20 in

Weight

0.61 lbs

Features:

Constant Current mode output with multiple levels selectable by dip switch
Plastic housing with class II design
Built-in active PFC function
Functions: 3 in 1 dimming (dim-to-off);
Auxiliary DC output; synchronization up to 10 units
3 years warranty

General Specification

AC Input Voltage Range

90 - 132VAC 127 - 186VDC

(Please refer to "STATIC CHARACTERISTIC" section)

AC Inrush Current (Max.)

COLD START 15A(twidth=270μs measured at 50% Ipeak) at 115VAC; Per NEMA 410

Short Circuit Protection

Constant current limiting, recovers automatically after fault condition is removed

Over-voltage Protection

105 ~ 125V

Shutdown o/p voltage, re-power on to recover

Over Temperature

Shutdown o/p voltage,re-power on to recover

Withstand Voltage

I/P-O/P:3.75KVAC

Working Temperature

Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety Standards

UL8750 approved

Dimension (LxWxH)

123.5x81.5x23mm

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
