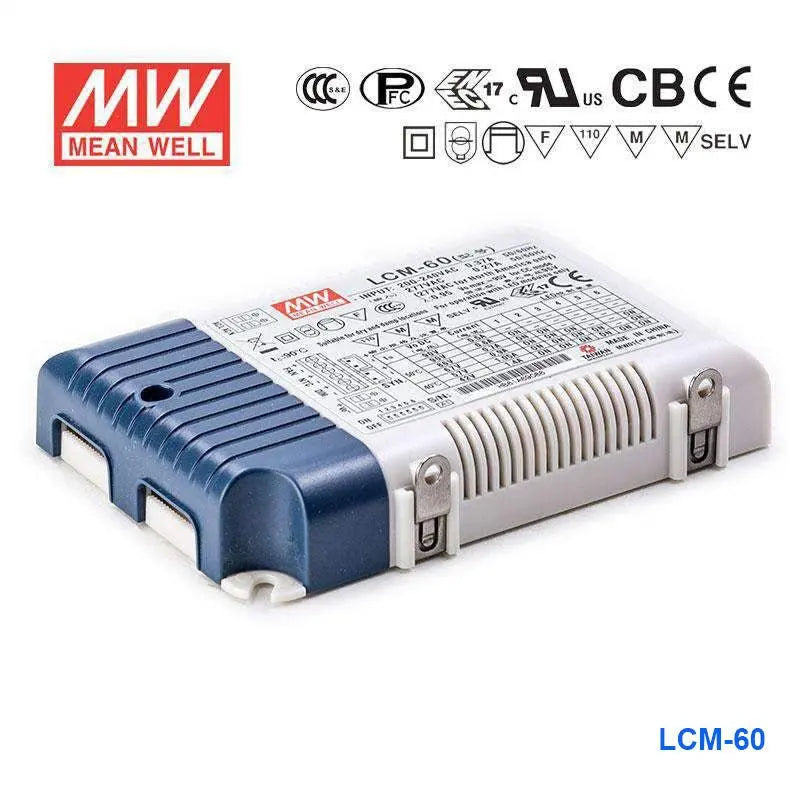

LCM-60

Name: LCM-60
Brand: MEAN WELL
Price: 34.59 USD
Availability: OutOfStock

$34.59

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$32.86

20+

$32.17

50+

$31.48

100+

$30.79

200+

$30.09

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

102V

Rated Current

0.7A

Power Rating

60.3W

Waterproof

Non-waterproof

Dimensions

4.86 x 3.20 x 0.90 in

Weight

0.52 lbs

Features

Constant current mode output with multiple levels selectable by dip switch

Plastic housing with class II design

Built-in active PFC function

Standby power consumption <1W

Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units

Optional: Wireless LED driver with integrated EnOcean module

3 years warranty

General Specification

AC input voltage range	180~295VAC; 254~417VDC
AC inrush current (Typ.)	COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Constant current limiting recovers automatically after the fault condition is removed
Over temperature protection	Shut down o/p voltage, re-power on to recover
Setup time	500ms / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards	UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,BIS IS15885, EAC TP TC 004 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	123.581.523mm
Packing	54pcs/15Kg
