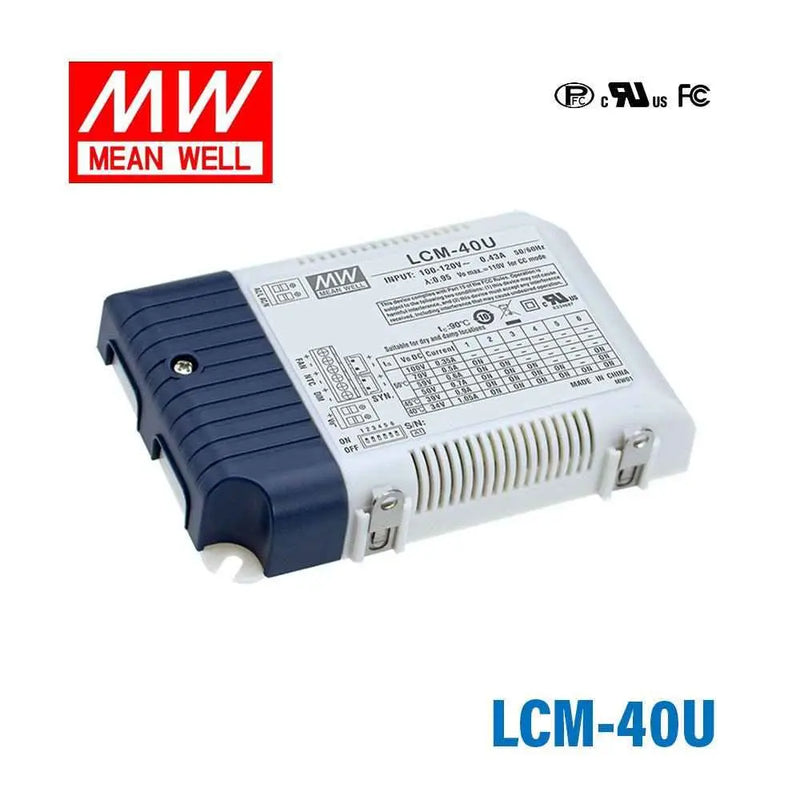

LCM-40U

LCM-40U

$39.61
Availability: Out of stock
ā„¹ļø Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$37.63
20+
$36.84
50+
$36.05
100+
$35.25
200+
$34.46
*Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
65V
Rated Current
0.7A
Power Rating
35W
Waterproof
Non-waterproof
Dimensions
4.86 x 0.90 x 3.20 in
Weight
0.61 lbs

Features:

  • Constant Current mode output with multiple levels selectable by dip switch
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Functions: 3 in 1 dimming (dim-to-off); Auxiliary DC output; synchronization up to 10 units
  • 3 years warranty

General Specification

AC Input Voltage Range

180 - 305Vac 255 - 431Vdc

(Please refer to "STATIC CHARACTERISTIC" section)

AC Inrush Current (Max.)

COLD START 15A(twidth=270Ī¼s measured at 50% Ipeak) at 115VAC; Per NEMA 410

Short Circuit Protection

Constant current limiting, recovers automatically after fault condition is removed

Over-voltage Protection

110 ~ 130V

Shutdown o/p voltage, re-power on to recover

Over Temperature

Shutdown o/p voltage,re-power on to recover

Withstand Voltage

I/P-O/P:3.75KVAC

Working Temperature

Tcase=-30 ~ +90ā„ƒ (Please refer to ā€œ OUTPUT LOAD vs TEMPERATUREā€ section)

Safety Standards

UL8750 approved

Dimension (LxWxH)

123.5x81.5x23mm

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
