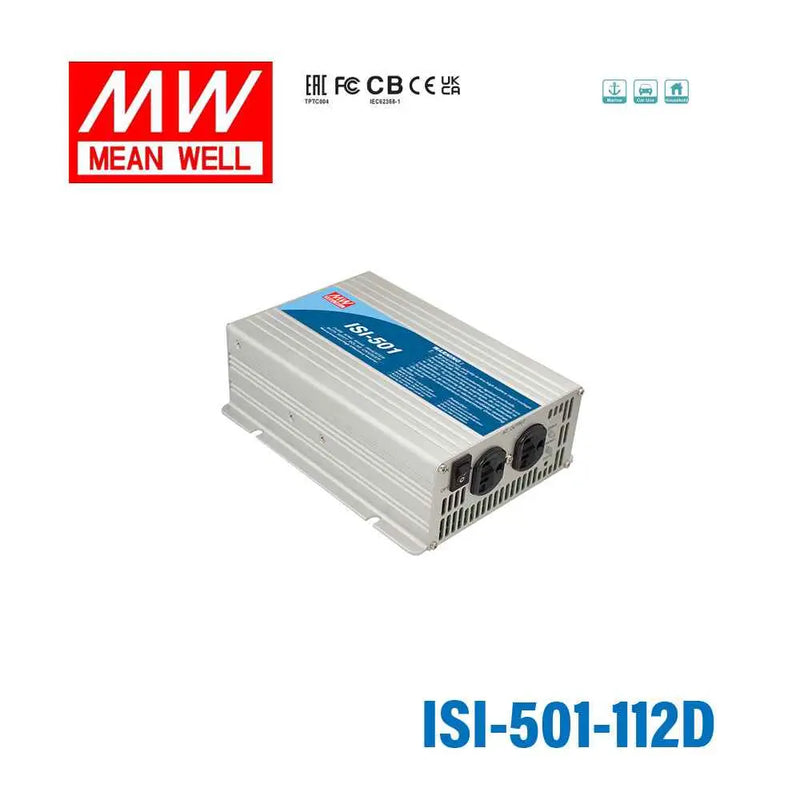

ISI-501-112D
Manufacturer MEAN WELL

ISI-501-112D

Availability: Out of stock
450 W110 V10.5V–15V in

Request a Backorder

Submit your request and we will confirm lead time.

ISI-501-112D
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$232.14 USD
10+
$220.53 USD
20+
$215.89 USD
50+
$211.25 USD
100+
$206.60 USD
200+
$201.96 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
10.5V~15V
Output Voltage
110V
Power Rating
450W
Waterproof
Non-waterproof
Dimensions & Weight
8.07 x 6.22 x 2.63 in5.18 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

                            Features:

                            • True sine wave output (THD<3%)
                            • High surge power up to 1000W
                            • High efficiency up to 88%
                            • High frequency design
                            • Thermostatically controlled cooling fan
                            • Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input polarity reverse / Overload
                            • Built-in 500W MPPT solar charger, MPPT efficiency: 98%(Typ.)
                            • Built-in remote ON-OFF control
                            • Built-in battery low relay contact
                            • LED indicator for operation status and battery capacity
                            • 3 years warranty

                            General Specification:

                            Input Voltage
                            (10.5 - 15VDC)
                            No Load Current Draw Type
                            (1.25A)
                            Off Mode Current Draw Type
                            ≦1mA
                            Battery Type
                            Open & sealed Lead Acid
                            Reverse Polarity
                            By internal fuse open
                            Overload Protection
                            110% load for 60 sec.
                            Protection type : Shut down o/p voltage, re-power on to recover.
                            Over Temperature
                            Shut down o/p voltage, re-power on to recover.
                            Output Short
                            Shut down o/p voltage, re-power on to recover.
                            Withstand Voltage
                            Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
                            Working Temperature
                            -20 ~ +40 @ 100% load ; 60 @ 50% load
                            Safety Standards
                            IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1
                            Dimension (LxWxH)
                            205x158x67mm

                            Similar Models

                            Same product family and output voltage, with the closest available power ratings.

                            Environmental Documents
                            📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
