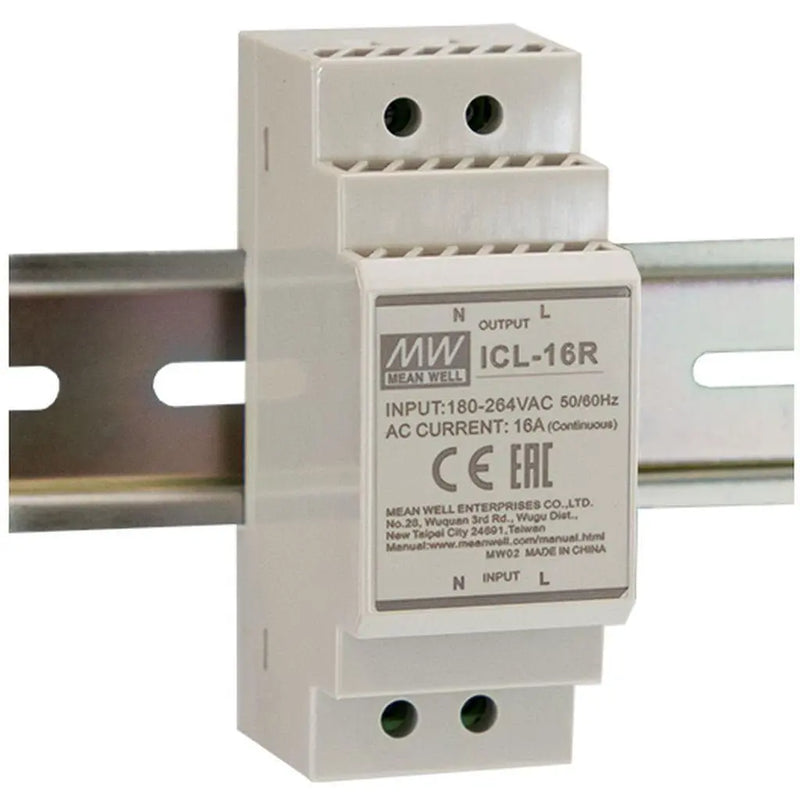

MEAN WELL ICL-16R power protection module

ICL-16R

Availability: Out of stock
16 A180V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

ICL-16R
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$46.71 USD
10+
$44.37 USD
20+
$43.44 USD
50+
$42.51 USD
100+
$41.57 USD
200+
$40.64 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
180V~264V
Rated Current
16A
Waterproof
Non-waterproof
Dimensions & Weight
3.54 x 2.14 x 1.37 in0.25 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

 23A inrush limiting current, 16A continuous
180~264VAC AC input
Integrated bypass relay, no simple NTC
Internal thermal protection
-30~+70°C wide working temperature
Installed on DIN Rail TS-35/7.5 or 15
3 years warranty

General Specification

AC input voltage  180~264VAC
Inrush current limiting 23A
AC input power 3680VA
Internal protection Thermal fuse protects overload and fire
Working temperature -30~+70°C
Operating altitude 5000 meters
Safety standards LVD BS EN/EN62368-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11
Case No ICL-16R
Dimension (LxWxH) 35x90x54.5
Packing 96pcs / 12.2kg
Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
