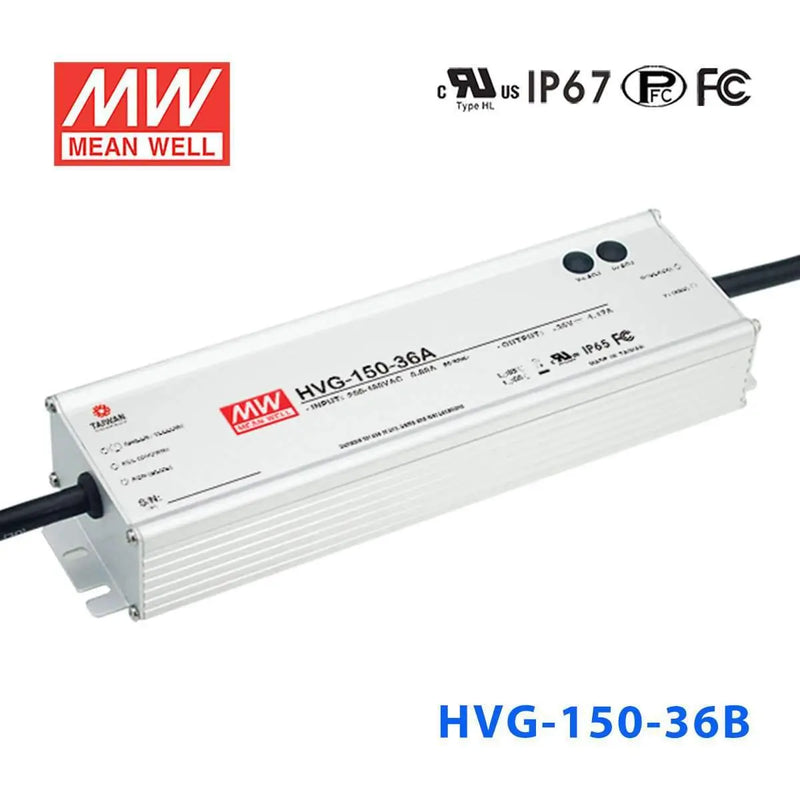

HVG-150-36B

Name: HVG-150-36B
Brand: MEAN WELL
Price: 75.43 USD
Availability: OutOfStock

$75.43

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$71.66

20+

$70.15

50+

$68.64

100+

$67.13

200+

$65.62

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

36V

Rated Current

4.17A

Power Rating

150.12W

Waterproof

IP67

Dimensions

9.64 x 2.67 x 1.52 in

Weight

2.73 lbs

Features

180~528VAC wide input range

IP67 / IP65 design

Built-in active PFC

Protections: Short circuit / Over current / Over voltage / Over temperature

C.V. +C.C. mode design

Class 2 power unit

High efficiency up to 91.5%

Cooling by free air convection

Suitable for dry, damp. and wet location

Suitable for LED lighting and street lighting applications

Output current adjustable through output cable or internal potentiometer

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details

5 years warranty

General Specification

AC input voltage range	180~528VAC (single phase); 254~747VDC
AC inrush current (max.)	Cold start, 35A at 480VAC
DC adjustment range	±10% rated output voltage
Current adjustment range	55%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input	UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type	SJTW 14AWGx2C (30cm)
Connection Output B-Type	SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	245x 68x 38.8
