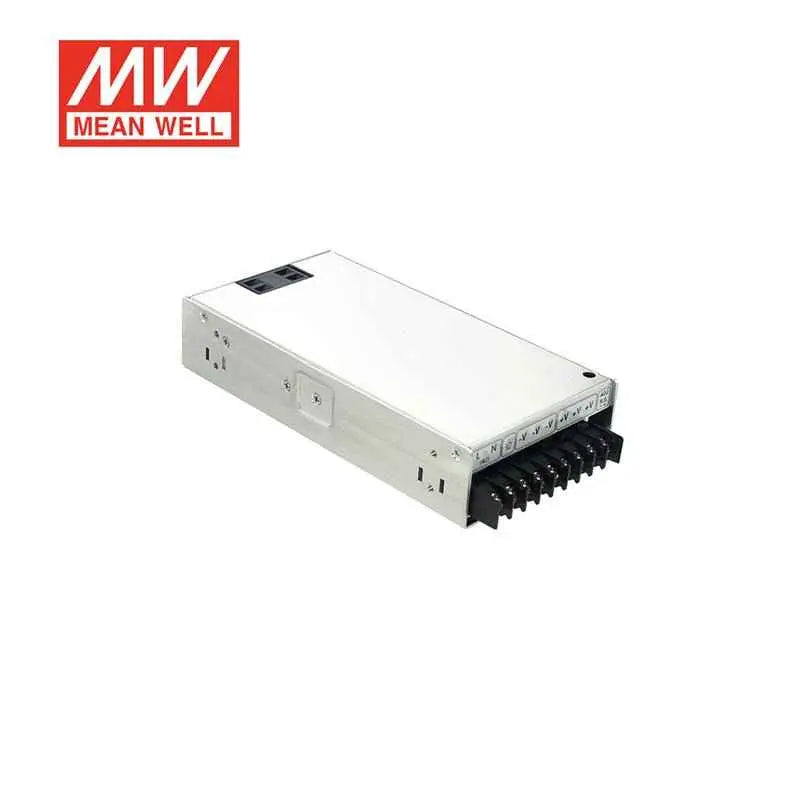

HSP-250-5

Name: HSP-250-5
Brand: MEAN WELL
Price: 43.56 USD
Availability: OutOfStock

$43.56

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$41.38

20+

$40.51

50+

$39.64

100+

$38.77

200+

$37.90

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

50A

Power Rating

250W

Waterproof

Non-waterproof

Dimensions

7.83 x 4.13 x 1.61 in

Weight

2.13 lbs

Features

Universal AC input / Full range

Built-in active PFC function, PF>0.95

High efficiency up to 87%

Protections: Short circuit / Overload / Over voltage / Over temperature

Free air cooling by built-in DC fan

1U low profile 41mm

Conformal coated

Built-in cooling fan ON-OFF control

Built-in remote sense functionl

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 1.0%
Overload protection Range	105 ~ 135% rated output power
Overload protection Type	Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC \| I/P-FG:1.5KVAC \| O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ +70 ℃ (Refer to "Derating Curve")
Safety standards	UL60950-1, TUV EN60950-1, approved
Dimension (LxWxH) (mm)	19910541mm (LWH)
Packing	0.97Kg;16pcs/16.5Kg/0.87CUFT
