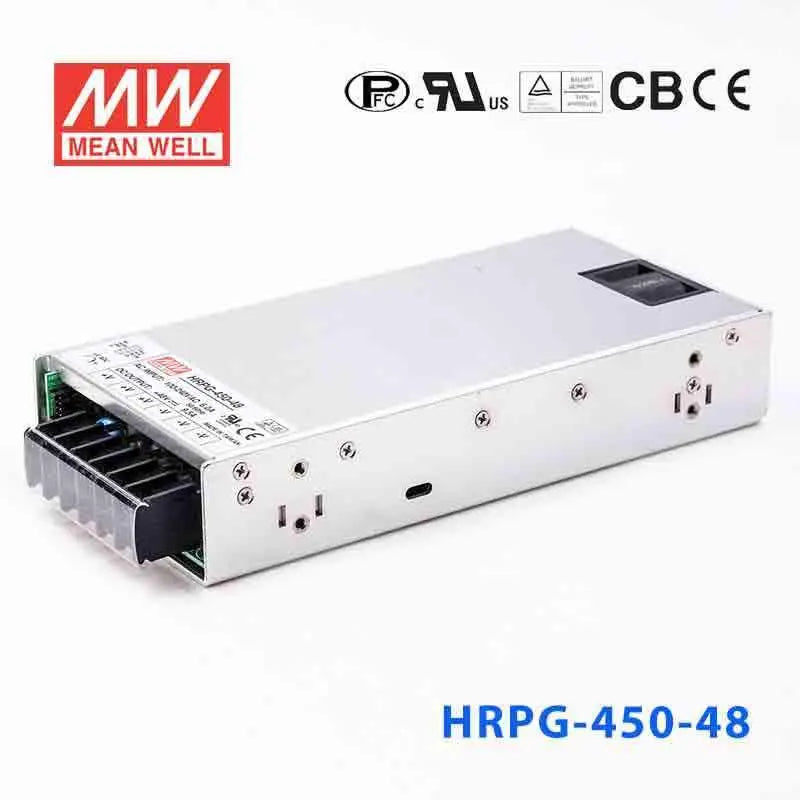

MEAN WELL HRPG-450-48 enclosed power supply, 48V 9.5A 450W
HRPG-450-48 specifications: 48V DC 9.5A, 456W, input 85-264VAC, 89.5% efficiency, UL62368-1
HRPG-450-48 dimensions 218 x 105 x 41 mm (8.58 x 4.13 x 1.61 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL HRPG-450-48 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
MEAN WELL HRPG-450-48 enclosed power supply, 48V 9.5A 450W
HRPG-450-48 specifications: 48V DC 9.5A, 456W, input 85-264VAC, 89.5% efficiency, UL62368-1
HRPG-450-48 dimensions 218 x 105 x 41 mm (8.58 x 4.13 x 1.61 in), mechanical drawing and terminal pin assignment
Why buy the MEAN WELL HRPG-450-48 from HTD Electronics: genuine MEAN WELL products with full datasheets, fast USA shipping, volume and project quotes, expert support
Manufacturer MEAN WELL

HRPG-450-48

Availability: Out of stock
456 W48 V9.5 A85Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

HRPG-450-48
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$157.13 USD
10+
$149.27 USD
20+
$146.13 USD
50+
$142.99 USD
100+
$139.85 USD
200+
$136.70 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
48V
Rated Current
9.5A
Power Rating
456W
Waterproof
Non-waterproof
Dimensions & Weight
8.58 x 4.13 x 1.61 in2.62 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Built-in remote sense function
Forced air cooling by built-in DC fan
Built-in DC OK signal
No load power consumption<0.5W
Built-in remote ON/OFF control & 5V / 0.3A standby output
1U low profile
100% full load burn-in test
5 years warranty


General SpecificationĀ

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range Ā±15% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -40~+70Ā°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection 3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH) 218x105x41
Case No. 995A

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
