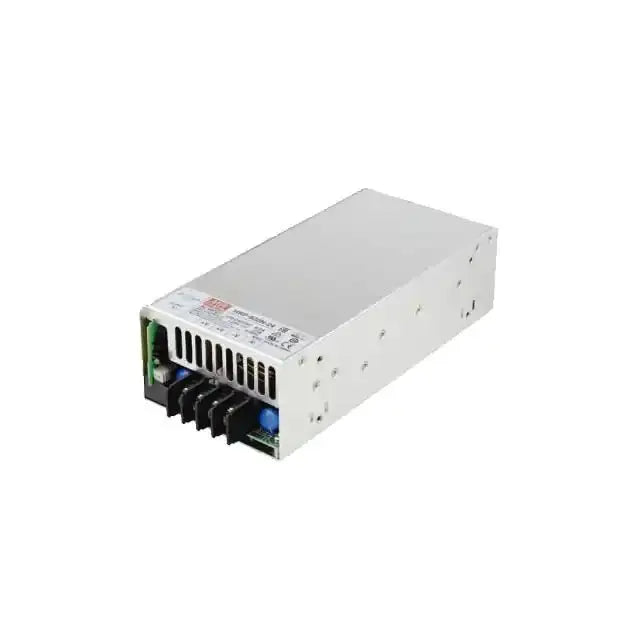

HRP-600-12 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

HRP-600N-48

Availability: Out of stock
600 W48 V13 A85V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

HRP-600N-48
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$162.87 USD
10+
$154.73 USD
20+
$151.47 USD
50+
$148.21 USD
100+
$144.95 USD
200+
$141.70 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
48V
Rated Current
13A
Power Rating
600W
Waterproof
Non-waterproof
Dimensions & Weight
8.58 x 4.13 x 2.42 in3.06 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Built-in remote sense function
Forced air cooling by built-in DC fan
Built-in DC OK signal
1U low profile
100% full load burn-in test
5 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range ±15% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -40~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection 3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH) 218x105x63.5
Case No. 977A

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
