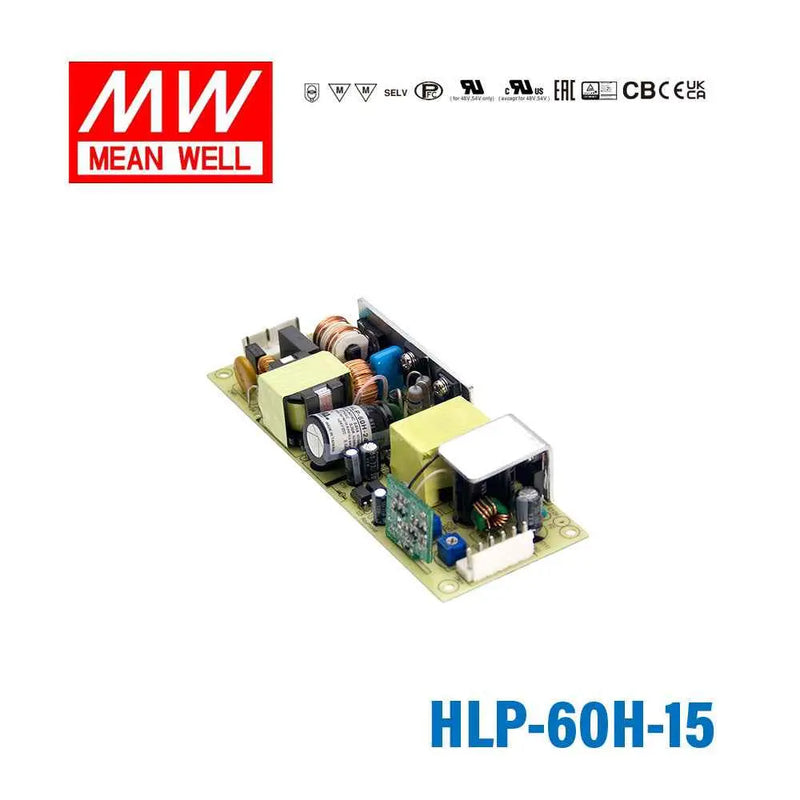

HLP-60H-15

Features:

• Universal AC input / Full range (up to 305VAC)
• Built-in active PFC function
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• Output constant current level adjustable
• Class 2 power unit
• Three in one dimming function (1~10Vdc or PWM signal or resistance)
• Suitable for built in LED lighting system
• Suitable for dry / damp locations
• 100% full load burn-in test
• 3 years warranty

  General Specification


AC Input Voltage Range
90-305VAC 127-431VDC
AC Inrush Current (max.)
COLD START 70A(twidth=525μs measured at 50% Ipeak) at 230VAC
Over Current Protection
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed
Over-Voltage Protection
14 - 17V | 18 - 24V | 23 - 30V | 35 - 43V | 41 - 49V | 48 - 58V | 54 - 63V | 59 -68V |
Protection type : Shut down o/p voltage, re-power on to recover
Over Temperature Protection
Shut down o/p voltage, re-power on to recover
Withstand Voltage
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working Temperature
-40 ~ +70℃(Refer to "Derating Curve")
Safety Standards
UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved ; Design refer to UL60950-1
Dimension (LxWxH)
167x53x29.5mm
