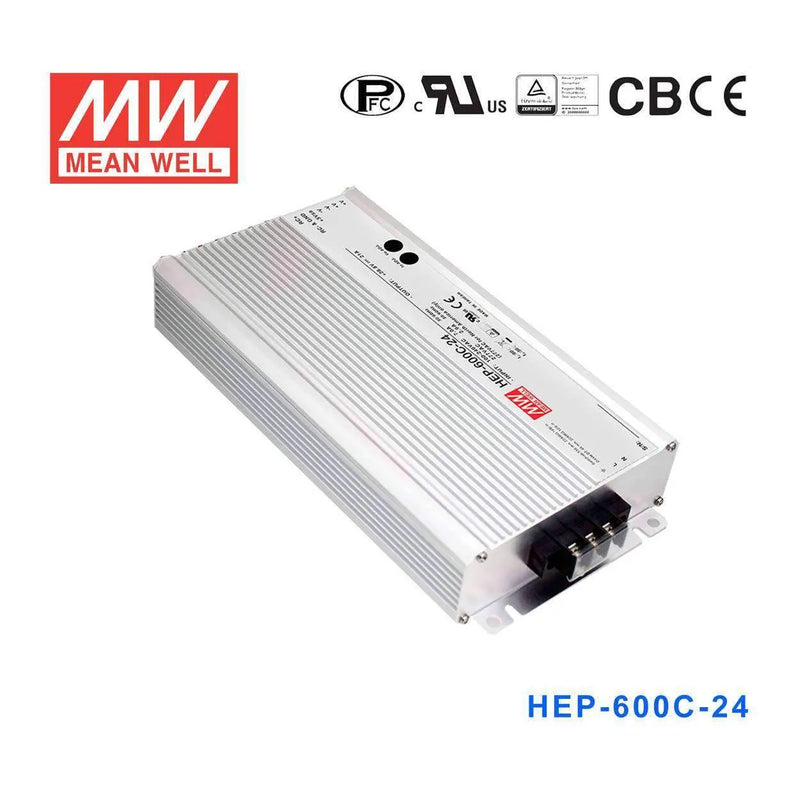

HEP-600C-24

Name: HEP-600C-24
Brand: MEAN WELL
Price: 257.89 USD
Availability: OutOfStock

$257.89

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$245.00

20+

$239.84

50+

$234.68

100+

$229.52

200+

$224.36

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

28.8V

Rated Current

21A

Power Rating

600W

Waterproof

Non-waterproof

Dimensions

11.02 x 5.66 x 1.90 in

Weight

8.59 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 96%

Built-in active PFC function

Protections: Short circuit / Over current / Over voltage / Over temperature

No load power consumption<0.5W at remote OFF

Cooling by free air convection

Output current adjustable

Aluminum case and filling with heat-conducted glue

Withstand 10G vibration test

LED indicator for power on

6 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	-10%~+10% rated output voltage (A-Type only)
Current adjustment range	50%~100%
Over current protection	105%~125% constant current limiting, auto-recovery
Over voltage protection	105%~135% rated output voltage
Setup, rise, hold up time	500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL62368-1, TUV BS EN6236-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input	3P / 11mm pitch terminal block with cover
Connection Output	7P / 11mm pitch terminal block with cover
Dimension (LxWxH) (mm)	280x 144x 48.5
