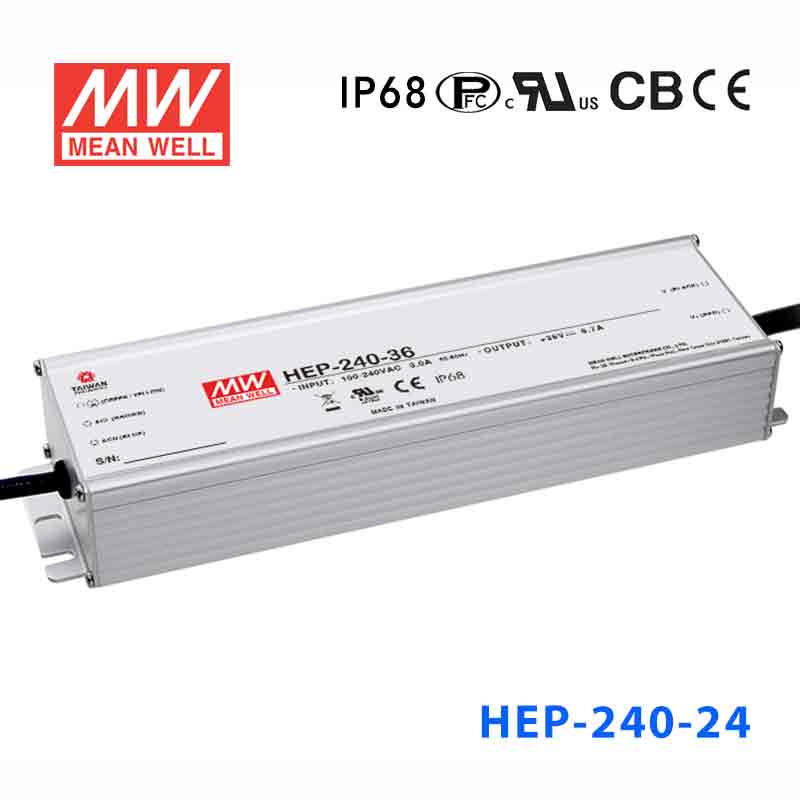

HEP-240-12 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

HEP-240-24

Availability: Out of stock
240 W24 V10 AIP6890V–305V in

Request a Backorder

Submit your request and we will confirm lead time.

HEP-240-24
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$109.67 USD
10+
$104.19 USD
20+
$101.99 USD
50+
$99.80 USD
100+
$97.61 USD
200+
$95.41 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~305V
Output Voltage
24V
Rated Current
10A
Power Rating
240W
Waterproof
IP68
Dimensions & Weight
9.61 x 2.67 x 1.52 in2.86 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 93%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
IP65 design, optional IP68 rated model available
Cooling by free air convection
Meet 6KV surge immunity level
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
Operating altitude up to 5000 meters
6 years warranty



General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 75A at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 60%~100%
Over current protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature -55~+70ºC (refer to output derating curve)
Safety standards UL62368-1, IEC62368-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EAC TP TC 020
Connection Input SJTW 18AWGx3C(30cm)
Connection Output SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)
Dimension (LxWxH) (mm) 244.2x 68 x 38.8

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
