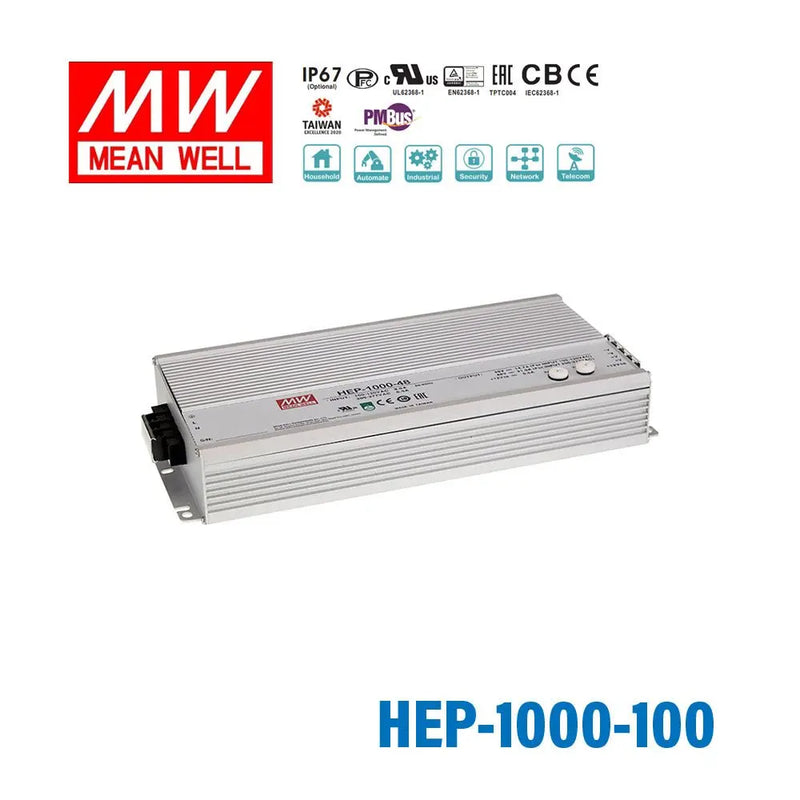

MEAN WELL HEP-1000-100 enclosed power supply
Manufacturer MEAN WELL

HEP-1000-100

Availability: Out of stock
1000 W100 V10 AIP6790Vā€“305V in

Request a Backorder

Submit your request and we will confirm lead time.

HEP-1000-100
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$413.98 USD
10+
$393.28 USD
20+
$385.00 USD
50+
$376.72 USD
100+
$368.44 USD
200+
$360.16 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~305V
Output Voltage
100V
Rated Current
10A
Power Rating
1000W
Waterproof
IP67
Dimensions & Weight
12.20 x 5.66 x 1.90 in8.81 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 96%
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
IP67 design for indoor or outdoor installation
Cooling by free air convection
DC OK active signal and 12V Auxiliary power available
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
Operating altitude up to 5000 meters
6 years warranty

Ā

General SpecificationĀ

AC input voltage range 90~305VAC ; 250~431VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 50%~100%
Over current protection 105%~125% constant current limiting, auto-recovery
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 1800ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+70ĀŗC (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input 3+7P / 11mm pitch terminal block with cover
Connection Output W-Type:SJTW 16AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)+ AWM 24AWGx6C(35cm)
Dimension (LxWxH) (mm) 310x 144x 48.5

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
