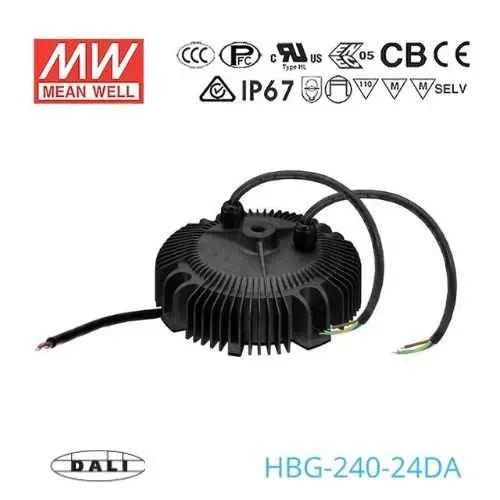

HBG-240-24DA

Name: HBG-240-24DA
Brand: MEAN WELL
Price: 71.02 USD
Availability: OutOfStock

$71.02

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$67.47

20+

$66.05

50+

$64.63

100+

$63.21

200+

$61.79

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

10A

Power Rating

240W

Waterproof

IP67

Dimensions

7.53 x 7.53 x 2.71 in

Weight

4.62 lbs

Features

Constant Voltage + Constant current mode output

Circular plastic housing with class I design

Built-in active PFC function

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	90~305VAC 127~431VDC
AC inrush current (max.)	Cold start, 75A at 230VAC
DC adjustment range	65%~100% rated current
Over current protection	95 ~ 108%; Constant current limiting, recovers automatically after fault condition is removed
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+75°C
Safety standards	UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	SJTW 18AWG/SVT 18AWG
Dimension (DxH)	ψ191.5mm x 69mm
Packing	2.1Kg; 8pcs/18.3Kg/2.09CUFT
